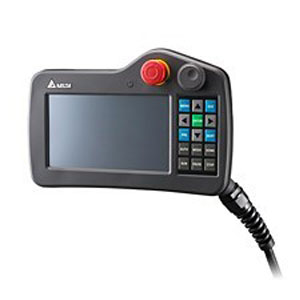

Delta DOP-107H Human Machine Interface
The Delta DOP-107H Human Machine Interface is designed as a graphical operator panel for process visualization and touch-based interaction within industrial automation systems. It uses a 7" TFT LCD display supporting 16-bit with a structured 800 x 480 resolution and an LED Back Light for stable screen visibility during continuous operation. Manufactured by Delta, part of the Delta HMI family within the Delta DOP-100 Series.
| Brand | Delta |
| Product | HMI |
| Model Number | DOP-107H |
Delta DOP-107H Human Machine Interface - Technical Specifications:
| Specification | Value |
|---|---|
| Display | 7" TFT LCD |
| Color | 16-bit |
| Resolution (Pixels) | 800 x 480 |
| Back Light | LED Back Light |
| Back Light Brightness (cd/m2 ) | 400 |
| Back Light Life (Hour)*1 | 20,000 |
| Display Area | 154.08 x 85.92 mm |
| MCU | ARM Cortex-A8 (800 MHz) |
| Flash ROM (Bytes) | 256 MB |
| RAM (Bytes) | 256 MB |
| Touch Panel | Four-wire resistor, over > 10,000,000 pressing times |
| Buzzer | Multi-Tone Frequency (2 K ~ 4K Hz) / 80 dB |
| Ethernet Interface | N / A |
| USB | 1 USB Slave Ver 2.0 |
| SD | SD / SDHC |
| Serial COM1/2/3/4 Port | RS-422 / RS-485, B contact x 2 |
| RTC | Built-in |
| Cooling | Natural cooling |
| Certification | CE (please use shielding Ethernet cables and magnetic rings with filters of 300 ohm / 100 MHz) |
| Waterproof | Protection Rating: IP54 |
| Operation Voltage*3 | DC +24V (-15% ~ +15%)*2, supplied by SELV circuits (isolated from MAINS by double insulation) |
| Voltage Endurance | AC500V for one minute (between DC24 and FG terminals) |
| Power Consumption*5 | 4.896 W*3 |
| Backup Battery | 3V lithium battery CR2450 Γ 1 |
| Backup Battery Life | About 5 years or more at 25 o C (77 o F)(subject to operation temperature and condition) |
| Operation Temperature | 0 oC ~ 40 o C |
| Storage Temperature | -10 oC ~ 60 oC |
| Ambient Humidity | 10% ~ 90% RH (0 ~ 40 oC), 10% ~ 55% RH (41 ~ 50 oC), Pollution Degree 2 |
| Viberation | IEC 61131-2 compliant 5 Hz ~ 8.3 Hz = Continuous: 3.5 mm, 8.3 Hz ~ 150 Hz = Continuous: 1 g |
| Shock | IEC 60068-2-27 compliant 15g peak for 11ms duration, X, Y, Z, directions for 6 times |
| Dimensions (W) x (H) x (D) mm | 257.4 x 170.3 x 71.8 (emergency stop switch and hook included) |
| Mounting Dimensions (W) x (H) mm | - |
| Weight | 750 g (cable excluded) |
