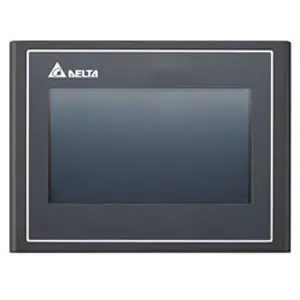

Delta DOP-107DV HMI 7 Inch Touch Display Panel
The Delta DOP-107DV Human Machine Interface is designed as a graphical operator panel for process visualization and touch-based interaction within industrial automation systems. It features a 7-inch TFT LCD display with 800 Γ 480 resolution and LED backlight, ensuring clear visibility during continuous operation. This model is commonly used in machine interfaces that require stable display performance and responsive touch control. Manufactured by Delta automation products, it is part of the operator interface panels range and belongs to the DOP-100 series models used across industrial environments.
| Brand | Delta |
| Product | HMI |
| Model Number | DOP-107DV |
Delta DOP-107DV Human Machine Interface - Technical Specifications:
| Specification | Value |
|---|---|
| Display | 7" TFT LCD |
| Color | 16-bit |
| Resolution (Pixels) | 800 x 480 |
| Back Light | LED Back Light |
| Back Light Brightness (cd/m2 ) | 400 |
| Back Light Life (Hour)*1 | 20,000 |
| Display Area | 154.08 x 85.92 mm |
| MCU | ARM Cortex-A8 (800 MHz) |
| Flash ROM (Bytes) | 256 MB |
| RAM (Bytes) | 512 MB |
| Touch Panel | Four-wire resistor, over > 1,000,000 pressing times |
| Buzzer | Multi-Tone Frequency (2K ~ 4K Hz) / 80dB |
| Ethernet Interface | 1 Port*2, 10/100 Mbps auto-sensing |
| USB | 1 USB Slave Ver 2.0 / 1 USB Host Ver 2.0 |
| SD | N/A |
| Serial COM1/2/3/4 Port | COM1 RS-232 (supports hardware flow control)*2/ RS-485*2 (107DV non-isolated circuit) COM2 RS-422 / RS-485*2 (107DV non-isolated circuit) COM3 N / A |
| RTC | Built-in |
| Cooling | Natural air circulation |
| Certification | CE/UL (please use shielding Ethernet cables and magnetic rings with filters of 300 ohm / 100 MHz) |
| Waterproof | IP65 / NEMA4 / UL Type 4X (indoor use only) |
| Operation Voltage*3 | DC +24V (-15% ~ +15%) *2 (107DV non-isolated circuit), supplied by Class 2 or SELV circuit (isolated from MAINS by double insulation) |
| Voltage Endurance | AC500V for 1 minute (between charging DC24 terminal and FG terminals) |
| Power Consumption*5 | Max. 8.8W*3 |
| Backup Battery | 3V lithium battery CR2032 Γ 1 |
| Backup Battery Life | Depends on the temperature used and the conditions of usage, usually about 3 years or more at 25 o C |
| Operation Temperature | 0 oC ~ 50 o C |
| Storage Temperature | -20 oC ~ 60 oC |
| Ambient Humidity | 10% ~ 90% RH (0 ~ 40 o C), 10% ~ 55% RH (41 ~ 50 o C), Pollution Degree 2 |
| Viberation | IEC 61131-2 compliant 5 Hz ~ 8.3 Hz = Continuous: 3.5 mm, 8.3 Hz ~ 150 Hz = Continuous: 1 g |
| Shock | IEC 60068-2-27 compliant 15 g peak for 11 ms duration, X, Y, Z, directions for 6 times |
| Dimensions (W) x (H) x (D) mm | 215 x 161 x 35.5 |
| Mounting Dimensions (W) x (H) mm | 196.9 x 142.9 |
| Weight | 700 g |
The Delta DOP-107DV is built to provide stable and efficient operator interaction in automation systems where clear visualization and reliable control are required. It supports real-time monitoring of machine processes and enables smooth communication between the operator and control system. The 7-inch display size offers a balanced interface for compact panels while maintaining sufficient visibility for process control tasks.
In industrial applications, this unit is used in packaging machines, conveyors, and process control systems where continuous display operation is essential. The structure of the panel ensures consistent touch response and stable screen performance under varying working conditions. Its design supports integration into standard control panel layouts without increasing complexity, making it suitable for a wide range of automation setups.
From a system perspective, the Delta DOP-107DV connects clearly with the DOP-100 series and the broader HMI category used in industrial automation. The relationship between model, display size, and application helps maintain a clear structure for machine interface design. This alignment supports consistent operation and long-term reliability across automation environments.
