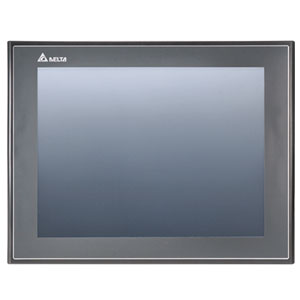

Delta DOP-112WX HMI 12 Inch Touch Panel
The Delta DOP-112WX Human Machine Interface is designed as a graphical operator panel for process visualization and touch-based interaction within industrial automation systems. It features a 12-inch TFT LCD display with 24-bit color support and a structured 1024 Γ 768 resolution, ensuring clear and stable screen visibility during continuous operation. This model is commonly used in machine interfaces where a larger display is required for monitoring and control. Manufactured by Delta products, it is part of the HMI control panels range and belongs to the DOP-100 series panels used in industrial automation systems.
| Brand | Delta |
| Product | HMI |
| Model Number | DOP-112WX |
Delta DOP-112WX Human Machine Interface - Technical Specifications:
| Specification | Value |
|---|---|
| Display | 12" TFT LCD |
| Color | 24-bit |
| Resolution (Pixels) | 1,024 x 768 |
| Back Light | LED Back Light |
| Back Light Brightness (cd/m2 ) | 500 |
| Back Light Life (Hour)*1 | 50,000 |
| Display Area | 245.76 x 184.32 mm |
| MCU | Cortex-A7, Dual Core 1 GHz |
| Flash ROM (Bytes) | 8 GB |
| RAM (Bytes) | DDR3 1,000 MHz 1 GB |
| Touch Panel | Four-wire resistor, over 10,000,000 pressing times |
| Buzzer | Multi-Tone Frequency (2K ~ 4K Hz) / 85 dB |
| Ethernet Interface | 2 Ports*2, 10 / 100 Mbps Auto sensing |
| USB | 1 Mini USB Slave Ver 2.0 / 1 USB Host Ver 2.0 |
| SD | SD x 1 |
| Serial COM1/2/3/4 Port | COM1:RS-232 (supporting flow control) / RS-485*2, COM2: RS-422 / RS-485*2, COM3: RS-232 (supporting flow control) / RS-485*2, COM4: RS-422 / RS-485 *2 |
| RTC | Built-in |
| Cooling | Natural air circulation |
| Certification | CE / UL (please use shielding Ethernet cables and magnetic rings with filters of 300 ohm / 100 MHz) |
| Waterproof | IP65 / NEMA4 / UL Type 4X (indoor use only) |
| Operation Voltage*3 | DC +24V (-15% ~ 15%)*2, supplied by Class 2 or SELV circuit (isolated from MAINS by double insulation) |
| Voltage Endurance | AC500 V for 1 minute (between charging DC24 terminal and FG terminals) |
| Power Consumption*5 | Max. 16.08 W |
| Backup Battery | 3V lithium battery CR2032 Γ 1 |
| Backup Battery Life | Depends on the temperature used and the conditions of usage, usually about 3 years or more at 25 o C |
| Operation Temperature | 0 oC ~ 50 o C |
| Storage Temperature | -20 oC ~ 60 oC |
| Ambient Humidity | 10% ~ 90% RH (0 ~ 40 oC), 10% ~ 55% RH (41 ~ 50 oC), Pollution Degree 3 |
| Viberation | IEC 61131-2 compliant 5 Hz ~ 8.3 Hz = Continuous: 3.5 mm, 8.3 Hz ~ 150 Hz = Continuous: 1 g |
| Shock | IEC 60068-2-27 compliant 15 g peak for 11 ms duration, X, Y, Z, directions for 6 times |
| Dimensions (W) x (H) x (D) mm | 317.4 x 246.4 x 52.7 |
| Mounting Dimensions (W) x (H) mm | 302.7 x 228.7 |
| Weight | 2,110 g |
The Delta DOP-112WX is built for reliable operator interaction in automation panels that require a large and clear display interface. It supports touch-based control and real-time process monitoring, making it suitable for machines where visual clarity and control accuracy are important. Engineers selecting a 12 inch HMI typically consider this model for its display quality, stable performance, and ease of integration into control systems.
In industrial environments, this unit is used in packaging systems, process lines, and control panels where multiple parameters need to be monitored on a single screen. The 12-inch display provides enough space for clear visualization of machine status, alarms, and operational data. Its design ensures consistent touch response and reliable performance during continuous operation, supporting smooth communication between the operator and the system.
From a system perspective, the Delta DOP-112WX integrates easily into standard automation setups. Its structured display, stable operation, and compatibility with industrial control systems make it a practical choice for applications that require dependable human-machine interaction. This clear relationship between model, display size, and application supports efficient system design and long-term usability in automation environments.
