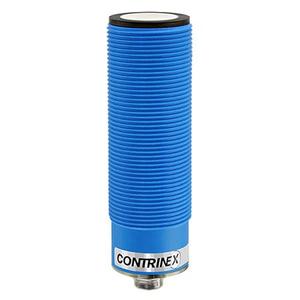

Contrinex UST-M30PS-TLS-101 Ultrasonic Sensor
The Contrinex UST-M30PS-TLS-101 Ultrasonic Sensors offers 350...3500 mm operating range, 12...30 supply voltage, NO (default)/NC + NO (default)/NC output, M12 4-pin connection. Manufactured by Contrinex under the Contrinex Ultrasonic Sensor category, this model belongs to the Contrinex USR/UST Series.
| Brand | Contrinex |
| Product Type | Ultrasonic Sensor |
| Model Number | UST-M30PS-TLS-101 |
Contrinex UST-M30PS-TLS-101 Ultrasonic Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Operating range | 350...3500 mm |
| Switching frequency max. | 2 Hz |
| Supply voltage | 12...30 |
| Product Range | Standard body |
| Polarity | NPN |
| Output | NO (default)/NC + NO (default)/NC |
| Connection | M12 4-pin |
| Housing size [mm] | M30 |
| Enclosure rating | IP 67 |
| Housing material | PBTP |
| Temperature range | -20...+70Β°C |
| Interface | Standard output |
| Operating principle | Diffuse |
