Maintenance teams planning replacements for DW-LS-603-M12 frequently review Contrinex Dw As 703 M12, Contrinex Inductive Sensors Dw and Contrinex Safety Light Curtain to prevent downtime, checking availability and compatibility with existing systems.

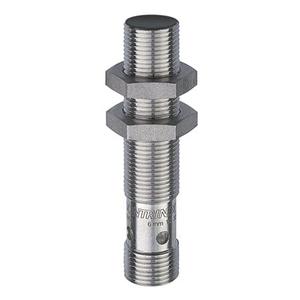

Contrinex DW-LS-603-M12 Inductive Sensor
The Contrinex DW-LS-603-M12 Inductive Sensors offers 2 mm operating range, 10...30 Supply voltage, Normally Open (NO)/IO-Link output, M12 4-pin Connection. Manufactured by Contrinex under the Contrinex Inductive Sensors category, this model belongs to the Contrinex DW Series.
| Brand | Contrinex |
| Product Type | Inductive Sensor |
| Model Number | DW-LS-603-M12 |
Contrinex DW-LS-603-M12 Inductive Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Operating range | 2 mm |
| Switching frequency max. | 1700 Hz |
| Supply voltage | 10...30 |
| Polarity | PNP |
| Output | Normally Open (NO)/IO-Link |
| Connection | M12 4-pin |
| Housing size [mm] | M12 |
| Enclosure rating | IP 68 / IP 69K |
| Housing material | Stainless-steel V4A |
| Temperature range | -25...+120Β°C |
| Sensor Height | 60 mm |
| Mounting | Embeddable |
| Interface | IO-Link |
| Operating pressure [bar] | β€ 80 bar |
