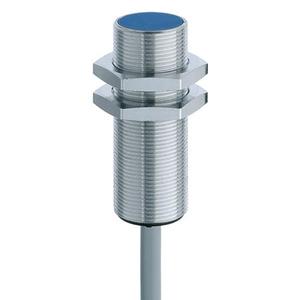

Contrinex DW-AD-623-M18 Inductive Sensor
The Contrinex DW-AD-623-M18 Inductive Sensors offers 8 mm operating range, 10...30 Supply voltage, Normally Open (NO)/IO-Link output, PVC, 2 m, 3 wire Connection. Manufactured by Contrinex under the Contrinex Inductive Sensors category, this model belongs to the Contrinex DW Series.
| Brand | Contrinex |
| Product Type | Inductive Sensor |
| Model Number | DW-AD-623-M18 |
Contrinex DW-AD-623-M18 Inductive Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Operating range | 8 mm |
| Switching frequency max. | 1500 Hz |
| Supply voltage | 10...30 |
| Polarity | PNP |
| Output | Normally Open (NO)/IO-Link |
| Connection | PVC, 2 m, 3 wire |
| Housing size [mm] | M18 |
| Enclosure rating | IP 67 |
| Housing material | Nickel-plated brass |
| Temperature range | -25...+70Β°C |
| Sensor Height | 50 mm |
| Mounting | Embeddable |
| Interface | IO-Link |
