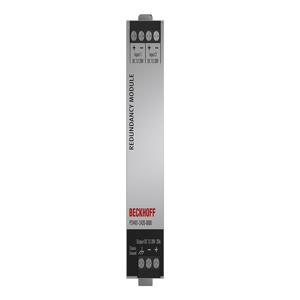

PS9401-2420-0000 - Beckhoff Power Supply
Technical Specifications of Beckhoff Power Supply PS9401-2420-0000:
| Brand | Beckhoff |
| Product Type | Power Supply |
| Product | PS9401-2420-0000 |
PS9401-2420-0000 Beckhoff Power Supply Technical Specifications
| Specification | Value |
|---|---|
| Input voltage | DC 12..28 V |
| Input current | 2 x 0..10 A |
| Output current | 0..20 A |
| Operating temperature | -40...+70°C |
| Shock resistance | conforms to EN 60068-2-27 |
| Vibration resistance | conforms to EN 60068-2-6 |
| Weight | approx. 250 g |
| Approvals/markings | CE, UL508, ATEX, IECEx, CCC |
| Protection rating | IP20 |
| Housing - Dimensions (W x H x D) | 32 mm x 124 mm x 117 mm |
| Housing - Material | aluminum |
| Housing - Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Housing - Wiring | input/output: screw type connection |
| Housing - Connection cross-section | input/output:e*: max. 6 mm²,f*: max. 4 mm²,a*: max. 4 mm² |
| Housing - Connection cross-section AWG | Input/Output: AWG20-10 |
| Housing - Stripping length | 7 mm |
| Input current for 5 s | 2 x 0..16 A |
| Output current 5 s | 20..32.5 A |
| Voltage drop input/output | typ. 60 mV; input 2 x 5 A,typ. 110 mV; input 2 x 10 A |
| Power loss | typ. 0.6 W; 24 V input: 2 x 5 A,typ. 2.0 W; 24 V input: 2 x 10 A |
