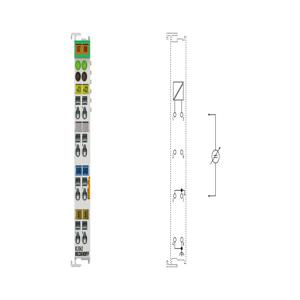

Number of inputs | 2 |
Current consumption K-bus | typ. 60 mA |
Bit width in the process image | input: 2 x 16Â bit data (2 x 8Â bit control/status optional) |
Configuration | no address or configuration setting |
Weight | approx. 60 g |
Operating temperature | 0...55°C |
Storage temperature | -25...+85°C |
Relative humidity | 95%, no condensation |
Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
Protect. rating/installation pos. | IP20/variable |
Pluggable wiring | for all KSxxxx Bus Terminals |
Approvals/markings | CE, CCC, UL, ATEX, IECEx |
Ex marking | ATEX:II 3 G Ex ec IIC T4 GcIECEx:Ex ec IIC T4 Gc |
Housing - Design form | compact terminal housing with signal LEDs |
Housing - Material | polycarbonate |
Housing - Dimensions (W x H x D) | 12Â mm x 100Â mm x 68 mm |
Housing - Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
Housing - Side by side mounting by means of | double slot and key connection |
Housing - Marking | labeling of the BZxxxx series |
Housing - Wiring | solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver |
Housing - Connection cross-section | s*: 0.08...2.5 mm²,st*: 0.08...2.5 mm²,f*: 0.14...1.5 mm² |
Housing - Connection cross-section AWG | s*: AWG28...14,st*: AWG28...14,f*: AWG26...16 |
Housing - Stripping length | 8...9 mm |
Housing - Current load power contacts | Imax: 10 A |
Current consumption power contacts | â (no power contacts) |
Resolution | 12 bit |
Signal voltage | 0â¦10 V |
Technology | single-ended |
