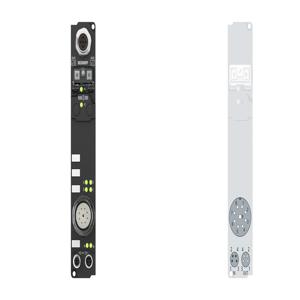

IP5209-B528-1000 - Beckhoff Fieldbus Box And IO-Link Box
Technical Specifications of Beckhoff Fieldbus Box And IO-Link Box IP5209-B528-1000:
| Brand | Beckhoff |
| Product Type | Fieldbus Box And IO-Link Box |
| Product | IP5209-B528-1000 |
IP5209-B528-1000 Beckhoff Fieldbus Box And IO-Link Box Technical Specifications
| Specification | Value |
|---|
| Auxiliary power current | according to I/O type |
| Power supply connection | feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded |
| Electrical isolation | control voltage/fieldbus: 500 V, control voltage/inputs or outputs: according to I/O type |
| Operating/storage temperature | 0â¦+55°C/-25â¦+85°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings | CE, UL |
| Housing - Dimensions (W x H x D) | 30 mm x 210 mm x 26.5 mm |
| Housing - Material | PA6 (polyamide) |
| Housing - Installation | 2 fixing holes 3.5 mm diameter for M3 |
