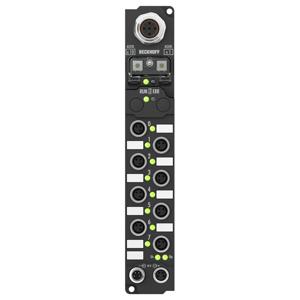

IP2301-B800 - Beckhoff Fieldbus Box And IO-Link Box
Technical Specifications of Beckhoff Fieldbus Box And IO-Link Box IP2301-B800:
| Brand | Beckhoff |
| Product Type | Fieldbus Box And IO-Link Box |
| Product | IP2301-B800 |
IP2301-B800 Beckhoff Fieldbus Box And IO-Link Box Technical Specifications
| Specification | Value |
|---|
| Digital peripheral signals | according to I/O type |
| Analog peripheral signals | according to I/O type |
| Protocol | open, documented protocol |
| Configuration possibility | via KS2000 |
| Bus interface | 1 x M12 socket, 5-pin, B-coded |
| Power supply | control voltage: 24 V DC (-15 %/+20 %); load voltage: according to I/O type |
| Box supply current | 45 mA + current consumption of sensors, max. 0.5 A |
| Auxiliary power current 1 | according to I/O type |
| Weight | approx. 210 g |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings | CE, UL |
| Housing - Dimensions (W x H x D) | 30 mm x 175 mm x 26.5 mm |
| Housing - Material | PA6 (polyamide) |
| Housing - Installation | 2 fixing holes 3.5 mm diameter for M3 |
