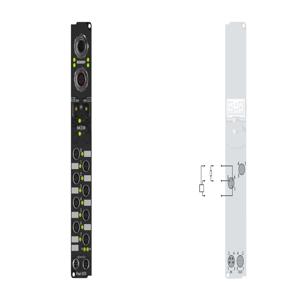

IP2041-B518 - Beckhoff Fieldbus Box And IO-Link Box
Technical Specifications of Beckhoff Fieldbus Box And IO-Link Box IP2041-B518:
| Brand | Beckhoff |
| Product Type | Fieldbus Box And IO-Link Box |
| Product | IP2041-B518 |
IP2041-B518 Beckhoff Fieldbus Box And IO-Link Box Technical Specifications
| Specification | Value |
|---|---|
| Load type | ohmic, inductive, lamp load |
| Max. output current | 2 A per channel, individually short-circuit proof, total current max. 12Γ A (channel 0Γ’ΒΒ¦3: Γ’ΒΒ 4 A, 4+5: Γ’ΒΒ 4 A, 6+7: Γ’ΒΒ 4Γ A) |
| Short-circuit current | typ. 4 A |
| Auxiliary power current | typ. 50 mA per channel |
| Power supply connection | feed: 2 x M8 male socket, 4-pin; no downstream connection |
| Bit width in the process image | 8 outputs |
| Electrical isolation | channels/control voltage: no, between the channels: no, control voltage/fieldbus: depends on the bus system |
| Digital peripheral signals | according to I/O type |
| Analog peripheral signals | according to I/O type |
| Configuration possibility | through KS2000 or the controller (service data objects) |
| Data transfer rates | automatic detection of 10 kbaud up to 1Γ Mbaud |
| Bus interface | 1 x M12 plug, 5-pin, 1 x M12 socket, 5-pin (tee-connector integrated) |
| Data transfer medium | shielded copper cable, 2 x signal, 1 x CAN ground (recommended) |
| Power supply | control voltage: 24 V DC (-15%/+20%); load voltage: according to I/O type |
| Box supply current | 45 mA + current consumption of sensors, max. 0.5 A |
| Auxiliary power current 1 | according to I/O type |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings | CE, UL |
| Housing - Dimensions (W x H x D) | 30 mm x 210 mm x 26.5 mm |
| Housing - Material | PA6 (polyamide) |
| Housing - Installation | 2 fixing holes 3.5 mm diameter for M3 |
| Output connections | M8, screw type |
| Nominal output voltage | 24 V DC (-15%/+20%) |
