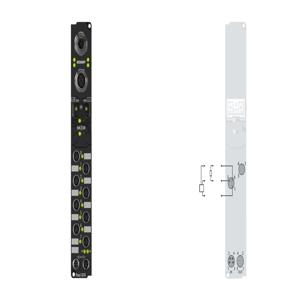

IP2041-B310 - Beckhoff Fieldbus Box And IO-Link Box

Name: Beckhoff IP2041-B310
Brand: Beckhoff
SKU: IP2041-B310
Rating: 4.1 (4 reviews)

Technical Specifications of Beckhoff Fieldbus Box And IO-Link Box IP2041-B310:

IP2041-B310 Beckhoff Fieldbus Box And IO-Link Box Technical Specifications

Specification	Value
Load type	ohmic, inductive, lamp load
Max. output current	2 A per channel, individually short-circuit proof, total current max. 12Â A (channel 0â¦3: â 4 A, 4+5: â 4 A, 6+7: â 4Â A)
Short-circuit current	typ. 4 A
Auxiliary power current	typ. 50 mA per channel
Power supply connection	feed: 2 x M8 male socket, 4-pin; no downstream connection
Bit width in the process image	8 outputs
Electrical isolation	channels/control voltage: no, between the channels: no, control voltage/fieldbus: depends on the bus system
Configuration possibility	via KS2000 or the controller, DP-V1 extensions are supported
Data transfer rates	automatic detection up to 12 Mbaud
Bus interface	1 x M12 socket, 5-pin, B-coded
Data transfer medium	shielded copper cable, 2 x 0.25 mmÂ²
Power supply	control voltage: 24 V DC (-15%/+20%); load voltage: according to I/O type
Box supply current	85 mA + current consumption of sensors, max. 0.5 A
Auxiliary power current 1	according to I/O type
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL
Housing - Dimensions (W x H x D)	30 mm x 175 mm x 26.5 mm
Housing - Material	PA6 (polyamide)
Housing - Installation	2 fixing holes 3.5 mm diameter for M3
Output connections	M8, screw type
Nominal output voltage	24 V DC (-15%/+20%)
