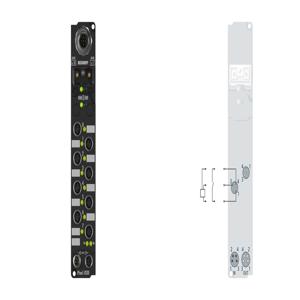

IP1001-B520 - Beckhoff Fieldbus Box And IO-Link Box
Technical Specifications of Beckhoff Fieldbus Box And IO-Link Box IP1001-B520:
| Brand | Beckhoff |
| Product Type | Fieldbus Box And IO-Link Box |
| Product | IP1001-B520 |
IP1001-B520 Beckhoff Fieldbus Box And IO-Link Box Technical Specifications
| Specification | Value |
|---|---|
| Input filter | 3.0 ms |
| "0" signal voltage | -3...+5 V (EN 61131-2, type 2) |
| "1" signal voltage | 11...30 V (EN 61131-2, type 2) |
| Sensor supply | from control voltage, max. 0.5 A, short-circuit proof in total |
| Power supply connection | feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded |
| Bit width in the process image | 8 inputs |
| Electrical isolation | channels/control voltage: no, between the channels: no, control voltage/fieldbus: depends on the bus system |
| Digital peripheral signals | according to I/O type |
| Analog peripheral signals | according to I/O type |
| Configuration possibility | through KS2000 or the controller (explicit messaging) |
| Data transfer rates | automatic detection up to 500 kbaud |
| Bus interface | 1 x M12 plug, 5-pin |
| Data transfer medium | shielded copper cable, with power supply, typ. 2 x 2 x 0.25 mmΓΒ² |
| Power supply | control voltage: 24 V DC (-15%/+20%); load voltage: according to I/O type |
| Box supply current | 45 mA + current consumption of sensors, max. 0.5 A |
| Auxiliary power current 1 | according to I/O type |
| Distance between stations | 500 m 250 m 100 m |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings | CE, UL |
| Housing - Dimensions (W x H x D) | 30 mm x 175 mm x 26.5 mm |
| Housing - Material | PA6 (polyamide) |
| Housing - Installation | 2 fixing holes 3.5 mm diameter for M3 |
| Number of inputs | 8 |
| Input connections | M8, screw type |
| Nominal input voltage | 24 V DC (-15%/+20%) |
| Input current | typ. 6 mA (EN 61131-2, type 2) |
