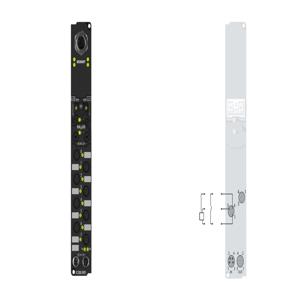

| Specification | EN 61131-2, type 2 |
| Number of channels | 4 inputs + 4 outputs |
| Input/output connections | 8 mm, snap type |
| Input filter | 3.0 ms |
| "0" signal voltage | -3...+5 V |
| "1" signal voltage | 11..30 V, 6 mA input current (EN 61131-2, type 2) |
| Sensor supply | from control voltage, max. 0.5 A, short-circuit proof in total |
| Load type | ohmic, inductive, lamp load |
| Rated load voltage | 24 V DC (-15%/+20%) |
| Max. output current | 0.5 A per channel, individually short-circuit proof |
| Short-circuit current | typ. 1.5 A |
| Auxiliary power current | typ. 20 mA |
| Current consumption from US | see documentation |
| Power supply connection | feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded |
| Bit width in the process image | 4 inputs + 4 outputs |
| Electrical isolation | channels/control voltage: no, between the channels: no, control voltage/fieldbus: depends on the bus system |
| Special features | IP-Link coupler |
| Operating/storage temperature | 0â¦+55°C/-25â¦+85°C |
| Digital peripheral signals | max. 512 inputs and 512 outputs |
| Analog peripheral signals | max. 127 inputs and 127 outputs |
| Protocol | EtherNet/IP |
| Configuration possibility | via KS2000 |
| Data transfer rates | 10/100 Mbit/s, automatic recognition of the transmission rate |
| Bus interface | 1 x M12 socket, 4-pin (D-coded) |
| Data transfer medium | Industrial Ethernet cable (Cat.5), 100Â MBaud |
| Power supply | control voltage: 24 V DC (-15%/+20%); load voltage: according to I/O type |
| Box supply current | typ. 150 mA + current consumption of sensors, max. 0.5 A |
| Auxiliary power current 1 | according to I/O type |
| Topology | star over Ethernet hub or Ethernet Switch |
| Distance between stations | 100 m (between hub/switch and IL230x-B905) |
| Weight | approx. 250 g |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings | CE, UL |
| Housing - Dimensions (W x H x D) | 30 mm x 210 mm x 26.5 mm |
| Housing - Material | PA6 (polyamide) |
| Housing - Installation | 2 fixing holes 3.5 mm diameter for M3 |
