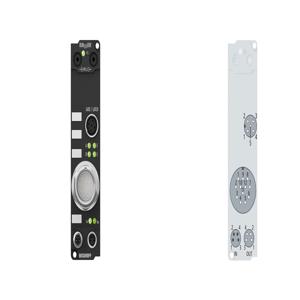

IE5109 - Beckhoff Extension Box Position Measurement
Technical Specifications of Beckhoff Extension Box Position Measurement IE5109:
| Brand | Beckhoff |
| Product Type | Extension Box Position Measurement |
| Product | IE5109 |
IE5109 Beckhoff Extension Box Position Measurement Technical Specifications
| Specification | Value |
|---|
| Sensor supply | from control voltage, max. 0.5 A, short-circuit proof in total |
| Power supply connection | feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded |
| Bit width in the process image | input/output: 2 x 16 bit data + 1 x 8 bit control/status |
| Current consumption from US(without sensor current) | 55 mA |
| Electrical isolation | yes, via IP-Link |
| Operating temperature | 0...55Β°C |
| Storage temperature | -25...+85Β°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings | CE, UL |
| Housing - Dimensions (W x H x D) | 30 mm x 126 mm x 26.5 mm |
| Housing - Material | PA6 (polyamide) |
| Housing - Installation | 2 fixing holes 3.5 mm diameter for M3 |
| Number of channels | 1 |
| Nominal voltage | 24 V DC (-15%/+20%) |
