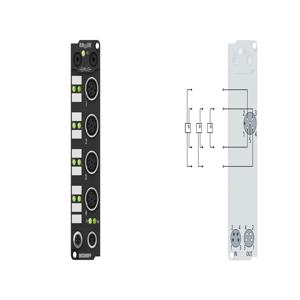

IE4132 - Beckhoff Extension Box Analog Output
Technical Specifications of Beckhoff Extension Box Analog Output IE4132:
| Brand | Beckhoff |
| Product Type | Extension Box Analog Output |
| Product | IE4132 |
IE4132 Beckhoff Extension Box Analog Output Technical Specifications
| Specification | Value |
|---|
| Power supply connection | feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded |
| Bit width in the process image | output: 4 x 16Â bit data (4 x 8Â bit control/status optional) |
| Current consumption from US(without sensor current) | 40 mA |
| Electrical isolation | channels/control voltage: yes, between the channels: no, control voltage/fieldbus: yes, via IP-Link |
| Operating temperature | 0...55°C |
| Storage temperature | -25...+85°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings | CE, UL |
| Housing - Dimensions (W x H x D) | 30 mm x 126 mm x 26.5 mm |
| Housing - Material | PA6 (polyamide) |
| Housing - Installation | 2 fixing holes 3.5 mm diameter for M3 |
| Number of outputs | 4 |
| Output connections | M12, screw type |
| Resolution | 16 bit (incl. sign) |
| Number of channels | 4 analog outputs |
| Measurement error/uncertainty | < ±0.1% (relative to full scale value) |
| Conversion time | < 4 ms |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Load | > 5 kΩ |
