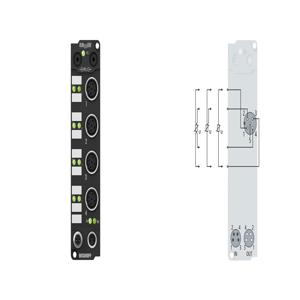

IE3202 - Beckhoff Extension Box Analog Input
Technical Specifications of Beckhoff Extension Box Analog Input IE3202:
| Brand | Beckhoff |
| Product Type | Extension Box Analog Input |
| Product | IE3202 |
IE3202 Beckhoff Extension Box Analog Input Technical Specifications
| Specification | Value |
|---|
| Number of inputs | 4 |
| Input filter | 5 variations, configurable |
| Sensor supply | from control voltage US |
| Power supply connection | feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded |
| Bit width in the process image | input: 4 x 16 bit data (4 x 8 bit control/status optional) |
| Current consumption from US(without sensor current) | 40 mA |
| Electrical isolation | channels/control voltage: 500 V, between the channels: no, control voltage/fieldbus: yes, via IP-Link |
| Operating temperature | 0...55°C |
| Storage temperature | -25...+85°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings | CE, UL |
| Housing - Dimensions (W x H x D) | 30 mm x 126 mm x 26.5 mm |
| Housing - Material | PA6 (polyamide) |
| Housing - Installation | 2 fixing holes 3.5 mm diameter for M3 |
| Resolution | 0.1°C per digit |
| Measurement error/uncertainty | < ±1°C |
| Conversion time | approx. 250Â ms, configurable up to 65 ms |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Connection method | screw type M12 for 2-, 3- and 4-wire connections, presetting: 4-wire |
| Sensor types | Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000, resistance measurement (e.g. potentiometer) |
