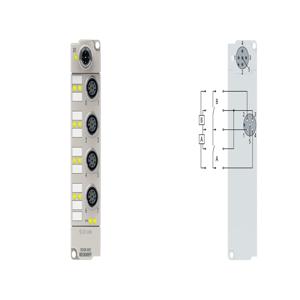

ERI1008-0002 - Beckhoff IO-Link Box Analog Input
Technical Specifications of Beckhoff IO-Link Box Analog Input ERI1008-0002:
| Brand | Beckhoff |
| Product Type | IO-Link Box Analog Input |
| Product | ERI1008-0002 |
ERI1008-0002 Beckhoff IO-Link Box Analog Input Technical Specifications
| Specification | Value |
|---|
| Communication | IO-Link |
| Interfaces | 1 x M12 plug, A-coded |
| Data transfer rates | 230.4 kbaud (COM 3) |
| Specification version | IO-Link V1.1, Class A |
| Number of inputs | 8 |
| Input connections | M12, screw type |
| Nominal input voltage | 24 V DC (-15%/+20%) |
| Input filter | 3.0 ms (default), adjustable 0â¦20 ms |
| "0" signal voltage | -3...+5 V (EN 61131-2, type 3) |
| "1" signal voltage | 11...30 V (EN 61131-2, type 3) |
| Input current | typ. 3 mA (EN 61131-2, type 3) |
| Sensor supply | max. 0.5 A, from L+, short-circuit proof in total |
| Current consumption | typ. 100 mA from L+ |
| Weight | approx. 265 g |
| Operating temperature | -25...+60°C |
| Storage temperature | -40...+85°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings | CE, UL |
| Housing - Dimensions (W x H x D) | 30 mm x 126 mm x 26.5 mm |
| Housing - Material | zinc die-cast |
| Housing - Installation | 2 fixing holes 3.5 mm diameter for M3 |
