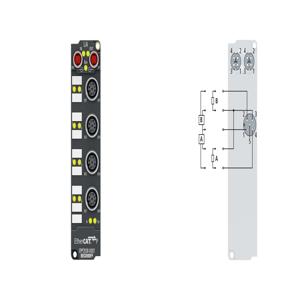

EPP2038-0002 - Beckhoff Industrial Housing
Technical Specifications of Beckhoff Industrial Housing EPP2038-0002:
| Brand | Beckhoff |
| Product Type | Industrial Housing |
| Product | EPP2038-0002 |
EPP2038-0002 Beckhoff Industrial Housing Technical Specifications
| Specification | Value |
|---|
| Protocol | EtherCAT |
| Bus interface | 2 x M8 socket, P-coded, shielded |
| Current consumption from US | typ. 100 mA |
| Operating temperature | -25...+60°C |
| Storage temperature | -40...+85°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings | CE, UL |
| Housing - Dimensions (W x H x D) | 30 mm x 126 mm x 26.5 mm |
| Housing - Material | PA6 (polyamide) |
| Housing - Installation | 2 fixing holes 3.5 mm diameter for M3 |
| Weight | approx. 165 g |
| Electrical isolation | 500 V |
| Load type | ohmic, inductive, lamp load |
| Max. output current | 2 A per channel, individually short-circuit proof, â 3 A |
| Switching times | typ. TON: 200 µs, typ. TOFF: 200 µs |
| Short-circuit current | typ. 15 A |
| Auxiliary power current | typ. 20 mA + load |
| Number of outputs | 8 |
| Output connections | M12 x 1, 5-pin, a-coded |
| Nominal output voltage | 24 V DC (-15%/+20%) |
