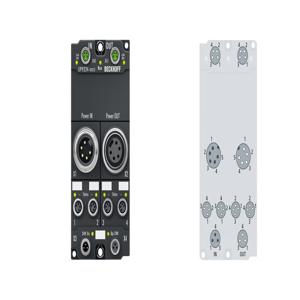

Many engineers reviewing Beckhoff EP9214-0023 also explore Beckhoff Ep9224 0023, Beckhoff Ep1111 0000 and Beckhoff Er8309 1022, ensuring they donβt miss strong alternatives before finalizing procurement decisions.

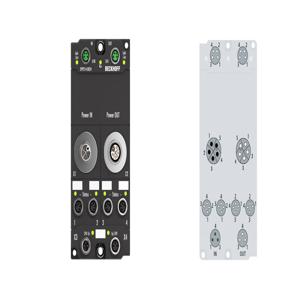

EP9214-0023 - Beckhoff EtherCAT Box System
EP9214-0023 Beckhoff EtherCAT Box System Technical Specifications
| Brand | Beckhoff |
| Product Type | EtherCAT Box System |
| Product | EP9214-0023 |
EP9214-0023 Beckhoff EtherCAT Box System Technical Specifications
| Specification | Value |
|---|---|
| Protocol | EtherCAT |
| Bus interface | 2 x M8 socket, 4-pin, a-coded, shielded |
| Power supply connection | feed: 1 x 7/8" plug, 5-pin; downstream connection: 1 x 7/8" socket, 5-pin |
| Electrical isolation | 500 V |
| Weight | approx. 440 g |
| Operating temperature | -25...+60Β°C |
| Storage temperature | -40...+85Β°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings | CE, UL, Class 2 according to UL1310 |
| Housing - Dimensions (W x H x D) | 60 mm x 126 mm x 26.5 mm |
| Housing - Material | PA6 (polyamide) |
| Housing - Installation | 2 fixing holes 3.5 mm diameter for M3; 2 fixing holes 4.5 mm diameter for M4 |
| Special features | energy-efficient switching on and off of EtherCAT devices |
| Load type | EtherCAT Box modules |
| Max. output current | per M8: 4 A per USand UP |
| Number of outputs | 4 x M8, 4-pin (per US/UP) |
| Connection method | M8 socket, 4-pin |
| Nominal voltage | 24 V DC (-15%/+20%) |
