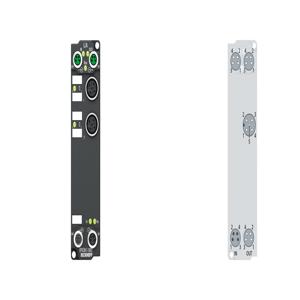

EP4314-1002 - Beckhoff EtherCAT Box Analog Input
EP4314-1002 Beckhoff EtherCAT Box Analog Input Technical Specifications
| Brand | Beckhoff |
| Product Type | EtherCAT Box Analog Input |
| Product | EP4314-1002 |
EP4314-1002 Beckhoff EtherCAT Box Analog Input Technical Specifications
| Specification | Value |
|---|---|
| Protocol | EtherCAT |
| Bus interface | 2 x M8 socket, 4-pin, a-coded, shielded |
| Number of inputs | 2 x analog (single-ended), 2 x digital |
| Power supply connection | feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded |
| Current consumption from US | 120 mA |
| Electrical isolation | 500 V |
| Operating temperature | -25...+60°C |
| Storage temperature | -40...+85°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings | CE, UL |
| Housing - Dimensions (W x H x D) | 30 mm x 126 mm x 26.5 mm |
| Housing - Material | PA6 (polyamide) |
| Housing - Installation | 2 fixing holes 3.5 mm diameter for M3 |
| Special features | combi module, current parameterizable per channel |
| Input/output connections | M12 x 1, 5-pin, a-coded |
| Number of outputs | 2 (single-ended) |
| Measurement error/uncertainty | input: < 0.3%, output: < 0.1% (each relative to full scale value) |
| Conversion time | input: ~ 100 µs, output: ~ 40 µs |
| Signal type | ±10 mA, ±20 mA, 0â¦20 mA, 4â¦20 mA, parameterizable per channel |
| Nominal voltage | 24 V DC (-15%/+20%) |
