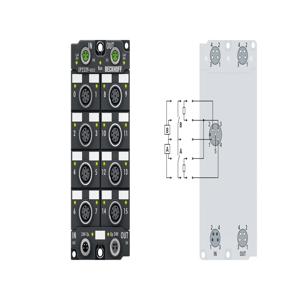

EP2339-0003 - Beckhoff EtherCAT Box Digital Input

Name: Beckhoff EP2339-0003
Brand: Beckhoff
SKU: EP2339-0003
Rating: 4.3 (4 reviews)

EP2339-0003 Beckhoff EtherCAT Box Digital Input Technical Specifications

EP2339-0003 Beckhoff EtherCAT Box Digital Input Technical Specifications

Specification	Value
Protocol	EtherCAT
Bus interface	2 x M8 socket, 4-pin, a-coded, shielded
Specification	EN 61131-2, type 1/3
Input filter	3.0 ms
"0" signal voltage	-3â¦+5 V
"1" signal voltage	11â¦30 V, 6 mA input current (EN 61131-2, type 3)
Power supply connection	feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded
Sensor supply	from load supply voltage, max. 0.5 A, short-circuit proof in total
Current consumption from US	120 mA
Electrical isolation	500 V
Weight	approx. 165 g
Operating temperature	-25...+60°C
Storage temperature	-40...+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/variable
Approvals/markings	CE, UL
Housing - Dimensions (W x H x D)	30 mm x 126 mm x 26.5 mm
Housing - Material	PA6 (polyamide)
Housing - Installation	2 fixing holes 3.5 mm diameter for M3
Number of channels	16 digital inputs or outputs
Input/output connections	connector with spring-loaded system
Load type	ohmic, inductive, lamp load
Rated load voltage	24 V DC (-15%/+20%)
Max. output current	0.5 A per channel, individually short-circuit proof, â 4 A
Switching times	typ. TON: 25 Âµs, typ. TOFF: 75 Âµs
Short-circuit current	typ. 1.5 A
Auxiliary power current	typ. 20 mA + load
