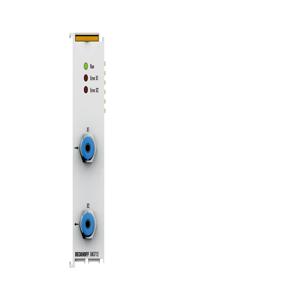

EM3712 - Beckhoff EtherCAT Terminal Analog Input
Technical Specifications of Beckhoff EtherCAT Terminal Analog Input EM3712:
| Brand | Beckhoff |
| Product Type | EtherCAT Terminal Analog Input |
| Product | EM3712 |
EM3712 Beckhoff EtherCAT Terminal Analog Input Technical Specifications
| Specification | Value |
|---|---|
| Number of inputs | 2 |
| Measurement error/uncertainty 2 | 3% (relative to full scale value) |
| Housing - Design form | compact terminal housing with signal LEDs |
| Housing - Material | polycarbonate |
| Housing - Dimensions (W x H x D) | 24 mm x 100 mm x 52 mm |
| Housing - Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Housing - Side by side mounting by means of | double slot and key connection |
| Housing - Wiring | specific push-in connection |
| Current consumption E-bus | typ. 70 mA |
| Weight | approx. 95 g |
| Operating temperature | 0...55°C |
| Storage temperature | -25.....+85°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/variable |
| Approvals/markings | CE, UL |
| Current consumption power contacts | â (no power contacts) |
| Measuring range | -1000â¦+1000 hPa (-1â¦+1 bar) |
