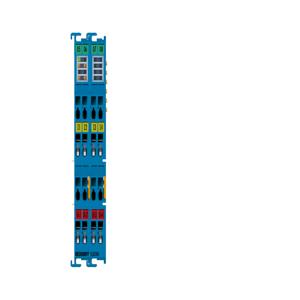

ELX3184 - Beckhoff EtherCAT Terminal Analog Input

Name: Beckhoff ELX3184
Brand: Beckhoff
SKU: ELX3184
Rating: 4.7 (4 reviews)

Technical Specifications of Beckhoff EtherCAT Terminal Analog Input ELX3184:

Brand	Beckhoff
Product Type	EtherCAT Terminal Analog Input
Product	ELX3184

ELX3184 Beckhoff EtherCAT Terminal Analog Input Technical Specifications

Specification	Value
Number of inputs	4 (single-ended)
Measurement error/uncertainty	typ. 250 Î©
Measurement error/uncertainty 2	< Â±0.3% (relative to full scale value)
Housing - Design form	compact terminal housing with signal LEDs
Housing - Material	polycarbonate, blue
Housing - Dimensions (W x H x D)	24Â mm x 100Â mm x 68 mm
Housing - Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Housing - Side by side mounting by means of	double slot and key connection
Housing - Marking	labeling of the BZxxxx series
Housing - Wiring	solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver
Housing - Connection cross-section	s: 0.08....2.5mm²,st: 0.08...2.5mm²,f*: 0.14....1.5 mm²
Housing - Connection cross-section AWG	s: AWG28...14,st: AWG28...14,f*: AWG26...16
Housing - Stripping length	8…9 mm
Distributed clocks	yes
Current consumption E-bus	typ. 60 mA
Special features	standard and compact process image, activatable FIR/IIR filters, limit value monitoring, NE43Â NAMUR
Weight	approx. 90 g
Operating temperature	-25....+60°C
Storage temperature	-40....+85°C
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/see documentation
Approvals/markings	CE, UL, ATEX, IECEx, cFMus
Current consumption power contacts	typ. 20 mA + load
Ex marking	ATEX:Â Â II 3(1)G Ex ec [ia Ga] IIC T4 GcÂ Â II (1)D [Ex ia Da] IIICÂ Â I (M1) [Ex ia Ma] IIECEx:Â Â Ex ec [ia Ga] IIC T4 GcÂ Â [Ex ia Da] IIICÂ Â [Ex ia Ma] I
Signal current	4â¦20 mA
Connection method	2-wire
