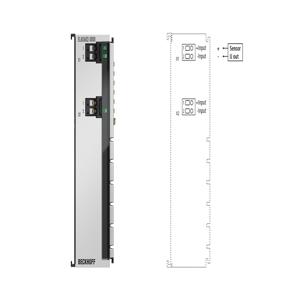

ELM3602-0000 - Beckhoff EtherCAT Terminal Analog Input
Technical Specifications of Beckhoff EtherCAT Terminal Analog Input ELM3602-0000:
| Brand | Beckhoff |
| Product Type | EtherCAT Terminal Analog Input |
| Product | ELM3602-0000 |
ELM3602-0000 Beckhoff EtherCAT Terminal Analog Input Technical Specifications
| Specification | Value |
|---|---|
| Housing - Design form | metal housing with signal LEDs |
| Housing - Material | zinc die-cast |
| Housing - Dimensions (W x H x D) | 30 mm x 100 mm x 95 mm |
| Housing - Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Housing - Side by side mounting by means of | double slot and key connection |
| Housing - Wiring | solid conductors (s): direct plug-in technique; fine-stranded conductors (st) and ferrule (f): spring actuation by screwdriver |
| Housing - Connection cross-section | s*: 0.2...1.5 mmΒ²,st*: 0.2..1.5 mmΒ²,f*: 0.25...0.75 mmΒ² |
| Housing - Connection cross-section AWG | s*: AWG24...14,st*: AWG24...4,f*: AWG24....14 |
| Housing - Stripping length | 8β¦9 mm |
