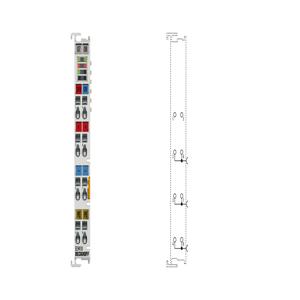

EL9410 - Beckhoff EtherCAT Terminals System
Technical Specifications of Beckhoff EtherCAT Terminals System EL9410:
| Spec | Value |
|---|
| Brand | Beckhoff |
| Product Type | EtherCAT Terminals System |
| Product | EL9410 |
EL9410 Beckhoff EtherCAT Terminals System Technical Specifications
| Specification | Value |
|---|
| Technology | power supply terminal |
| Special features | standard EL supply |
| Weight | approx. 65Â g |
| Operating temperature | -25....+60°C |
| Storage temperature | -40....+85°C |
| Approvals/markings | CE, CCC, UL, ATEX, IECEx, DNV GL |
| Ex marking | ATEX:II 3 G Ex ec IIC T4 GcIECEx:Ex ec IIC T4 Gc |
| Electrical isolation | 500 V (E-bus/field potential) |
| Housing - Design form | compact terminal housing with signal LEDs |
| Housing - Material | polycarbonate |
| Housing - Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
| Housing - Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Housing - Side by side mounting by means of | double slot and key connection |
| Housing - Marking | labeling of the BZxxxx series |
| Housing - Wiring | solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver |
| Housing - Connection cross-section | s*: 0.08...2.5mm²,st*: 0.08...2.5 mm²,f*: 0.14...1.5 mm² |
| Housing - Connection cross-section AWG | s*: AWG28...14,st*: AWG28...14,f*: AWG26...16 |
| Housing - Stripping length | 8....9 mm |
| Housing - Current load power contacts | Imax: 10 A |
| Pluggable wiring | for all ESxxxx terminals |
| Current consumption E-bus | â |
| Diagnostics in the process image | yes |
| Relative humidity | 95%, no condensation |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Protect. rating/installation pos. | IP20/variable |
| Input current | typ. 70 mA + (E-bus/4) |
| Input voltage | 24Â V DC (-15%/+20%) |
| Output voltage | 5 V for E-bus supply |
| Output current | 2 A |
| Power contacts | max. 24 V DC/max. 10 A |
