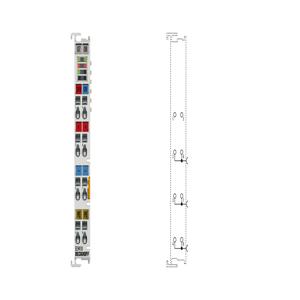

EL9410 - Beckhoff EtherCAT Terminals System
Beckhoff EL9410 EtherCAT Terminals System is a reliable power supply terminal designed to provide safe and stable 24 V DC distribution for industrial automation.
| Brand | Beckhoff |
| Product Type | EtherCAT Terminals System |
| Product | EL9410 |
EL9410 Beckhoff EtherCAT Terminals System Technical Specifications
| Specification | Value |
|---|---|
| Technology | power supply terminal |
| Special features | standard EL supply |
| Weight | approx. 65ร g |
| Operating temperature | -25....+60ยฐC |
| Storage temperature | -40....+85ยฐC |
| Approvals/markings | CE, CCC, UL, ATEX, IECEx, DNV GL |
| Ex marking | ATEX:II 3 G Ex ec IIC T4 GcIECEx:Ex ec IIC T4 Gc |
| Electrical isolation | 500 V (E-bus/field potential) |
| Housing - Design form | compact terminal housing with signal LEDs |
| Housing - Material | polycarbonate |
| Housing - Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
| Housing - Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Housing - Side by side mounting by means of | double slot and key connection |
| Housing - Marking | labeling of the BZxxxx series |
| Housing - Wiring | solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver |
| Housing - Connection cross-section | s*: 0.08...2.5mmยฒ,st*: 0.08...2.5 mmยฒ,f*: 0.14...1.5 mmยฒ |
| Housing - Connection cross-section AWG | s*: AWG28...14,st*: AWG28...14,f*: AWG26...16 |
| Housing - Stripping length | 8....9 mm |
| Housing - Current load power contacts | Imax: 10 A |
| Pluggable wiring | for all ESxxxx terminals |
| Current consumption E-bus | รขยย |
| Diagnostics in the process image | yes |
| Relative humidity | 95%, no condensation |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Protect. rating/installation pos. | IP20/variable |
| Input current | typ. 70 mA + (E-bus/4) |
| Input voltage | 24ร V DC (-15%/+20%) |
| Output voltage | 5 V for E-bus supply |
| Output current | 2 A |
| Power contacts | max. 24 V DC/max. 10 A |
The Beckhoff EL9410 EtherCAT Terminals System is a high-performance power supply terminal that delivers consistent and secure energy distribution within automation networks. It accepts a 24 V DC input and outputs 5 V for E-bus supply with a current of 2 A. Designed with electrical isolation of 500 V between the E-bus and field potential, it provides robust safety and ensures stable operation of EtherCAT devices. With the capacity to handle 10 A on power contacts, the EL9410 guarantees dependable current flow for demanding industrial applications. Integrated diagnostics within the process image and LED indicators simplify monitoring and maintenance.
Built with a compact 12 mm-wide polycarbonate housing, the EL9410 is engineered for DIN rail installation, supporting both solid and flexible conductors with cross-sections from 0.08 to 2.5 mmยฒ. It includes pluggable wiring for ESxxxx terminals, making it easy to integrate into existing EtherCAT architectures. Certified with CE, CCC, UL, ATEX, and IECEx along with DNV GL approvals, the EL9410 complies with global safety and EMC standards, including EN 61000-6-2 and EN 61000-6-4. Its shock and vibration resistance per EN 60068 further enhances its durability, ensuring reliable operation even in challenging industrial environments such as process control, packaging systems, and machine tools.
In real-world use, the EL9410 EtherCAT Terminals System is trusted by engineers for providing a stable backbone power supply to EtherCAT networks. Maintenance engineers appreciate its built-in diagnostics for quick fault detection, while automation designers rely on its safe isolation and scalability in distributed I/O systems. For engineering students and professionals, it serves as an ideal example of how auxiliary power terminals strengthen Position Measurement & Communication applications within EtherCAT ecosystems. Combining compact design, safety certifications, and proven performance, the Beckhoff EL9410 remains a dependable choice for industrial automation infrastructures.
