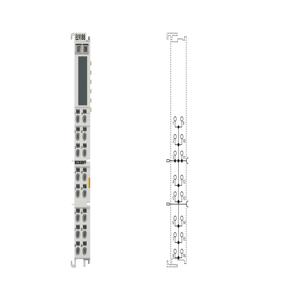

EL9188 - Beckhoff EtherCAT Terminals System
Technical Specifications of Beckhoff EtherCAT Terminals System EL9188:
| Spec | Value |
|---|---|
| Brand | Beckhoff |
| Product Type | EtherCAT Terminals System |
| Product | EL9188 |
EL9188 Beckhoff EtherCAT Terminals System Technical Specifications
| Specification | Value |
|---|---|
| Technology | potential distribution terminal |
| Housing width | 12Â mm |
| Special features | direct plug-in technique |
| Weight | approx. 60 g |
| Operating temperature | -25....+60°C |
| Storage temperature | -40....+85°C |
| Approvals/markings | CE, CCC, UL, ATEX, IECEx |
| Ex marking | ATEX:II 3 G Ex ec IIC T4 GcIECEx:Ex ec IIC T4 Gc |
| Current load | ⤠10 A |
| Nominal voltage | ⤠60 V |
| Electrical isolation | 500 V (E-bus/field potential) |
| Connection facility to additional power contact | 16 |
| Housing - Design form | HD (High Density) housing with signal LEDs |
| Housing - Material | polycarbonate |
| Housing - Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
| Housing - Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Housing - Side by side mounting by means of | double slot and key connection |
| Housing - Marking | labeling of the BZxxxx series |
| Housing - Wiring | solid conductors (s): direct plug-in technique; fine-stranded conductors (st) and ferrule (f): spring actuation by screwdriver |
| Housing - Connection cross-section | s*: 0.08...2.5mm²,st*: 0.08...2.5 mm²,f*: 0.14...1.5 mm² |
| Housing - Connection cross-section AWG | s*: AWG28...14,st*: AWG28...14,f*: AWG26...16 |
| Housing - Stripping length | 8....9 mm |
| Housing - Current load power contacts | Imax: 10 A |
| Number of outputs | e.g.: 16 x 24 V contact |
