EL6022 - Beckhoff EtherCAT Communication Interface

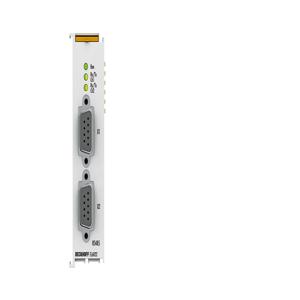

The Beckhoff EL6022 is a compact and robust Position Measurement & Communication module, functioning as a high-performance EtherCAT Communication Interface for industrial automation networks. It operates via the E-bus power supply and features dual interfaces of RS422/RS485 supporting data transfer rates from 300 to 115,200 baud, with a default configuration of 9600 baud, 8 data bits, no parity, and one stop bit. Its typical current consumption of 270 mA ensures energy-efficient operation while providing up to 2 x 5 V/20 mA external supply for connected devices. Designed with a durable polycarbonate housing measuring 24 mm x 100 mm x 52 mm, it can be easily installed on a 35 mm DIN rail with secure lock and supports side-by-side mounting using a double slot and key connection.

The EL6022 is engineered to perform reliably under harsh conditions, with an operating temperature range of -25…+60°C, storage up to -40…+85°C, 95% relative humidity tolerance, and vibration and shock resistance conforming to EN 60068-2-6/EN 60068-2-27. Its EMC compliance with EN 61000-6-2/EN 61000-6-4 and certifications including CE, UL, ATEX, and IECEx make it a trusted solution for global industrial environments. Equipped with push-in wiring, dual data channels, and buffered communication (864 bytes receive, 128 bytes transmit), the Beckhoff EL6022 EtherCAT Communication Interface ensures accurate position measurement, high-speed data transfer, and system reliability, ideal for complex automation, robotics, and process control applications.

The EL6022 is widely used in automation and industrial control systems across manufacturing, robotics, and process industries. It enables engineers to monitor precise positions, communicate efficiently with controllers, and integrate sensors and actuators seamlessly. In factories, it supports conveyor systems, automated assembly lines, and robotics arms with real-time data accuracy, ensuring minimal downtime and improved productivity.

Its ability to transmit reliable position and communication data over long distances up to approximately 1000 m using twisted pair cables makes it ideal for large-scale industrial setups. Maintenance engineers and engineering students benefit from its simple configuration, spring-actuated wiring, and compact design, allowing quick troubleshooting and system expansion. Overall, the Beckhoff EL6022 Position Measurement & Communication module is an essential component for building efficient, safe, and high-performance industrial automation systems in India and worldwide.
