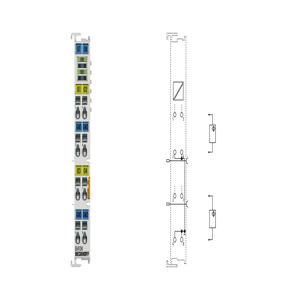

EL4134 - Beckhoff EtherCAT Terminal Analog Output
Technical Specifications of Beckhoff EtherCAT Terminal Analog Output EL4134:
| Brand | Beckhoff |
| Product Type | EtherCAT Terminal Analog Output |
| Product | EL4134 |
EL4134 Beckhoff EtherCAT Terminal Analog Output Technical Specifications
| Specification | Value |
|---|---|
| Number of outputs | 4 |
| Load | > 5 kΩ (short-circuit proof) |
| Resolution | 16 bit (incl. sign) |
| Housing - Design form | compact terminal housing with signal LEDs |
| Housing - Material | polycarbonate |
| Housing - Dimensions (W x H x D) | 12Â mm x 100Â mm x 68 mm |
| Housing - Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Housing - Side by side mounting by means of | double slot and key connection |
| Housing - Marking | labeling of the BZxxxx series |
| Housing - Wiring | solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver |
| Housing - Connection cross-section | s*: 0.08...2.5 mm²,st*: 0.08...2.5 mm²,f*: 0.14...1.5 mm² |
| Housing - Connection cross-section AWG | s*: AWG28...14,st*: AWG28...14,f*: AWG26...16 |
| Housing - Stripping length | 8...9 mm |
| Housing - Current load power contacts | Imax: 10 A |
| Power supply | via the E-bus |
| Distributed clocks | yes |
| Distributed clock precision | << 1 µs |
| Electrical isolation | 500 V (E-bus/signal voltage) |
| Current consumption E-bus | typ. 190 mA |
| Bit width in the process image | 4 x 16 bit AO output |
| Special features | Watchdog parameterizable; user synchronization can be activated. |
| Weight | approx. 65Â g |
| Operating temperature | -25...+55°C |
| Storage temperature | -25...+85°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/variable |
| Approvals/markings | CE, CCC, UL, ATEX, IECEx |
| Ex marking | ATEX:II 3 G Ex ec IIC T4 GcIECEx:Ex ec IIC T4 Gc |
| Pluggable wiring | for all ESxxxx terminals |
