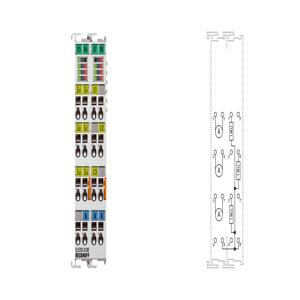

EL3783-0100 - Beckhoff EtherCAT Terminal Analog Input
Technical Specifications of Beckhoff EtherCAT Terminal Analog Input EL3783-0100:
| Brand | Beckhoff |
| Product Type | EtherCAT Terminal Analog Input |
| Product | EL3783-0100 |
EL3783-0100 Beckhoff EtherCAT Terminal Analog Input Technical Specifications
| Specification | Value |
|---|---|
| Number of inputs | 3 x current, 3 x voltage |
| Measuring range, technical | generally 130% of the nominal measuring range, see documentation |
| Measurement error/uncertainty 2 | 0.2% relative to full scale value |
| Housing - Design form | compact terminal housing with signal LEDs |
| Housing - Material | polycarbonate |
| Housing - Dimensions (W x H x D) | 24Â mm x 100Â mm x 68 mm |
| Housing - Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Housing - Side by side mounting by means of | double slot and key connection |
| Housing - Marking | labeling of the BZxxxx series |
| Housing - Wiring | solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver |
| Housing - Connection cross-section | s*: 0.08..2.5 mm²,st*: 0.08...2.5 mm²,f*: 0.14..1.5 mm² |
| Housing - Connection cross-section AWG | s*: AWG28..14,st*: AWG28..14,f*: AWG26...16 |
| Housing - Stripping length | 8…9 mm |
| Housing - Current load power contacts | Imax: 10 A |
| Distributed clocks | yes |
| Conversion time | 50 µs, all channels simultaneously |
| Electrical isolation | 4500 V |
| Current consumption E-bus | typ. 260 mA |
| Special features | oversampling, AC measurement, optional single-phase operation, adjustable automatic switch of current measuring range, electrically isolated current inputs |
| Weight | approx. 100 g |
| Operating temperature | 0...55°C |
| Storage temperature | -25...+85°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/see documentation |
| Approvals/markings | CE, UL |
| Oversampling factor | n = 1â¦100 selectable |
| Measuring current | max. 1 A (AC)/5 A (AC), via measuring transformers x A AC/1 A AC or 5 A AC |
| Measuring voltage | max. 130Â VÂ AC for voltage transformer |
