EL3621-0020 - Beckhoff EtherCAT Terminal Analog Input

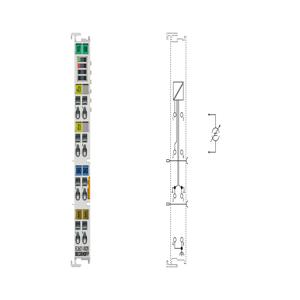

Name: Beckhoff EL3621-0020
Brand: Beckhoff
SKU: EL3621-0020
Rating: 4.9 (4 reviews)

Technical Specifications of Beckhoff EtherCAT Terminal Analog Input EL3621-0020:

Brand	Beckhoff
Product Type	EtherCAT Terminal Analog Input
Product	EL3621-0020

EL3621-0020 Beckhoff EtherCAT Terminal Analog Input Technical Specifications

Specification	Value
Number of inputs	1 (differential)
Measurement error/uncertainty	typ. 85 Î© + diode voltage
Input filter limit frequency	3 kHz
Measurement error/uncertainty 2	< Â±0.01% at 25Â°C (relative to full scale value, 50Â Hz filter)
Housing - Design form	compact terminal housing with signal LEDs
Housing - Material	polycarbonate
Housing - Dimensions (W x H x D)	12Â mm x 100Â mm x 68 mm
Housing - Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Housing - Side by side mounting by means of	double slot and key connection
Housing - Marking	labeling of the BZxxxx series
Housing - Wiring	solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver
Housing - Connection cross-section	s: 0.08..2.5 mm²,st: 0.08...2.5 mm²,f*: 0.14..1.5 mm²
Housing - Connection cross-section AWG	s: AWG28..14,st: AWG28..14,f*: AWG26...16
Housing - Stripping length	8…9 mm
Housing - Current load power contacts	Imax: 10 A
Power supply	via the E-bus
Common-mode voltage UCM	max. 10 V
Conversion time	1â¦400 ms configurable
Electrical isolation	500 V (E-bus/signal voltage)
Current consumption E-bus	typ. 190 mA
Special features	various filter times, limit evaluation, high precision, with calibration certificate
Weight	approx. 60 g
Operating temperature	-25...+60°C
Storage temperature	-40....+85°C
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/variable
Approvals/markings	CE
Signal current	4â¦20 mA
