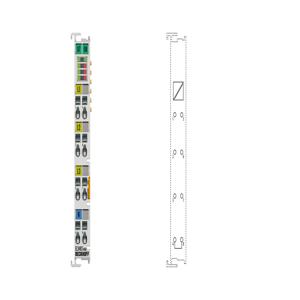

EL3483 - Beckhoff EtherCAT Terminal Analog Input

Name: Beckhoff EL3483
Brand: Beckhoff
SKU: EL3483
Rating: 4.5 (4 reviews)

Technical Specifications of Beckhoff EtherCAT Terminal Analog Input EL3483:

Brand	Beckhoff
Product Type	EtherCAT Terminal Analog Input
Product	EL3483

EL3483 Beckhoff EtherCAT Terminal Analog Input Technical Specifications

Specification	Value
Number of inputs	3 x voltage
Measurement error/uncertainty 2	0.5% relative to full scale value (U), 1% calculated value
Housing - Design form	compact terminal housing with signal LEDs
Housing - Material	polycarbonate
Housing - Dimensions (W x H x D)	12Â mm x 100Â mm x 68 mm
Housing - Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Housing - Side by side mounting by means of	double slot and key connection
Housing - Marking	labeling of the BZxxxx series
Housing - Wiring	solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver
Housing - Connection cross-section	s: 0.08..2.5 mm²,st: 0.08...2.5 mm²,f*: 0.14..1.5 mm²
Housing - Connection cross-section AWG	s: AWG28..14,st: AWG28..14,f*: AWG26...16
Housing - Stripping length	8…9 mm
Housing - Current load power contacts	Imax: 10 A
Electrical isolation	2500 V
Current consumption E-bus	typ. 120 mA
Special features	voltage, frequency and phase monitor, optional single-phase operation
Weight	approx. 75 g
Operating temperature	-25...+60°C
Storage temperature	-40....+85°C
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Approvals/markings	CE, UL
Measuring voltage	max. 480 V AC 3~ (ULX-N: max. 277 V AC/240 V DC)
Update time	net-synchronous
Update interval	ten mains periods (200Â ms at 50Â Hz)
