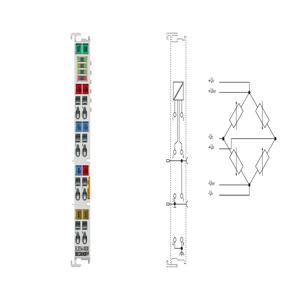

EL3356-0030 - Beckhoff EtherCAT Terminal Analog Input
Technical Specifications of Beckhoff EtherCAT Terminal Analog Input EL3356-0030:
| Brand | Beckhoff |
| Product Type | EtherCAT Terminal Analog Input |
| Product | EL3356-0030 |
EL3356-0030 Beckhoff EtherCAT Terminal Analog Input Technical Specifications
| Specification | Value |
|---|---|
| Number of inputs | 2, for 1 resistor bridge in full bridge technology |
| Measurement error/uncertainty | > 200 kΩ (UREF), > 1 MΩ (UD) |
| Input filter limit frequency | 10 kHz low pass (-3 dB) |
| Measurement error/uncertainty 2 | < ±0.01% for the calculated load value in relation to the final load value with a 12 V feed and 24 mV bridge voltage (hence nominal strain gauge characteristic value of 2 mV/V), self-calibration active, 50 Hz filter active |
| Housing - Design form | compact terminal housing with signal LEDs |
| Housing - Material | polycarbonate |
| Housing - Dimensions (W x H x D) | 12Â mm x 100Â mm x 68 mm |
| Housing - Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Housing - Side by side mounting by means of | double slot and key connection |
| Housing - Marking | labeling of the BZxxxx series |
| Housing - Wiring | solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver |
| Housing - Connection cross-section | s*: 0.08..2.5 mm²,st*: 0.08...2.5 mm²,f*: 0.14..1.5 mm² |
| Housing - Connection cross-section AWG | s*: AWG28..14,st*: AWG28..14,f*: AWG26...16 |
| Housing - Stripping length | 8…9 mm |
| Housing - Current load power contacts | Imax: 10 A |
| Distributed clocks | yes |
| Conversion time | 0.1â¦250 ms, configurable, max. 10,000 samples/s |
| Current consumption E-bus | typ. 280 mA |
| Special features | self-calibration, quadruple averager, dynamic filters, fast data sampling |
| Weight | approx. 60 g |
| Operating temperature | -25...+55°C |
| Storage temperature | -25....+85°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/variable |
| Approvals/markings | CE, UL, ATEX, IECEx |
| Current consumption power contacts | depends on strain gauge supply, min. 1 mA |
| Ex marking | ATEX:II 3 G Ex ec IIC T4 GcIECEx:Ex ec IIC T4 Gc |
