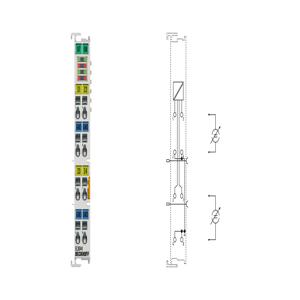

EL3044 - Beckhoff EtherCAT Terminal Analog Input
Technical Specifications of Beckhoff EtherCAT Terminal Analog Input EL3044:
| Brand | Beckhoff |
| Product Type | EtherCAT Terminal Analog Input |
| Product | EL3044 |
EL3044 Beckhoff EtherCAT Terminal Analog Input Technical Specifications
| Specification | Value |
|---|---|
| Number of inputs | 4 (single-ended) |
| Measurement error/uncertainty | typ. 85 Ω |
| Input filter limit frequency | 1 kHz |
| Dielectric strength | max. 30 V |
| Measurement error/uncertainty 2 | < ±0.3% (relative to full scale value) |
| Housing - Design form | compact terminal housing with signal LEDs |
| Housing - Material | polycarbonate |
| Housing - Dimensions (W x H x D) | 12Â mm x 100Â mm x 68 mm |
| Housing - Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Housing - Side by side mounting by means of | double slot and key connection |
| Housing - Marking | labeling of the BZxxxx series |
| Housing - Wiring | solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver |
| Housing - Connection cross-section | s*: 0.0..2.5 mm²,st*: 0.08..2.5 mm²,f*: 0.14...1.5 mm² |
| Housing - Connection cross-section AWG | s*: AWG28...14,st*: AWG28...14,f*: AWG26...16 |
| Housing - Stripping length | 8…9 mm |
| Housing - Current load power contacts | Imax: 10 A |
| Power supply | via the E-bus |
| Conversion time | 0.625 ms default setting, configurable, multiplex |
| Electrical isolation | 500 V (E-bus/signal voltage) |
| Current consumption E-bus | typ. 130 mA |
| Bit width in the process image | inputs: 16 byte |
| Configuration | no address or configuration setting required |
| Special features | standard and compact process image, activatable FIR/IIR filters, limit value monitoring |
| Weight | approx. 60 g |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/variable |
| Approvals/markings | CE, CCC, UL, ATEX, IECEx, DNV GL, cFMus |
| Ex marking | ATEX:II 3 G Ex ec IIC T4 GcIECEx:Ex ec IIC T4 GccFMus:Class I, Division 2, Groups A, B, C, DClass I, Zone 2, AEx ec IIC T4 Gc |
| Pluggable wiring | for all ESxxxx terminals |
| Signal current | 0...20 mA |
