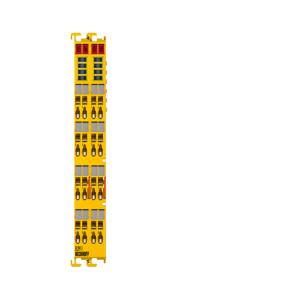

EL2911 - Beckhoff EtherCAT Terminal
EL2911 Beckhoff EtherCAT Terminal Technical Specifications
| Brand | Beckhoff |
| Product Type | EtherCAT Terminal |
| Product | EL2911 |
EL2911 Beckhoff EtherCAT Terminal Technical Specifications
| Specification | Value |
|---|---|
| Connection technology | 1-/2-wire and/or via power contacts |
| Current consumption power contacts | load-dependent |
| Current consumption E-bus | typ. 180 mA |
| Weight | approx. 98 g |
| Housing - Design form | compact terminal housing with signal LEDs |
| Housing - Material | polycarbonate |
| Housing - Dimensions (W x H x D) | 24Â mm x 100Â mm x 68 mm |
| Housing - Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Housing - Side by side mounting by means of | double slot and key connection |
| Housing - Marking | labeling of the BZxxxx series |
| Housing - Wiring | solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver |
| Housing - Connection cross-section | s*: 0.08â¦2.5 mm²,st*: 0.08â¦2.5 mm²,f*: 0.14â¦1.5 mm² |
| Housing - Connection cross-section AWG | s*: AWG28...14,st*: AWG28...14,f*: AWG26...16 |
| Housing - Stripping length | 8…9 mm |
| Housing - Current load power contacts | Imax: 10 A |
| Max. output current | 10 A |
