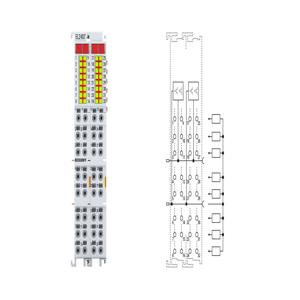

EL2407 - Beckhoff EtherCAT Terminal
EL2407 Beckhoff EtherCAT Terminal Technical Specifications
| Brand | Beckhoff |
| Product Type | EtherCAT Terminal |
| Product | EL2407 |
EL2407 Beckhoff EtherCAT Terminal Technical Specifications
| Specification | Value |
|---|---|
| Connection technology | 1-wire |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Current consumption power contacts | typ. 90 mA + load |
| Current consumption E-bus | typ. 55 mA |
| Electrical isolation | 500 V (E-bus/field potential) |
| Weight | approx. 100 g |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/variable |
| Approvals/markings | CE, UL |
| Housing - Design form | HD (High Density) housing with signal LEDs |
| Housing - Material | polycarbonate |
| Housing - Dimensions (W x H x D) | 24Â mm x 100Â mm x 68 mm |
| Housing - Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Housing - Side by side mounting by means of | double slot and key connection |
| Housing - Marking | labeling of the BZxxxx series |
| Housing - Wiring | solid conductors (s): direct plug-in technique; fine-stranded conductors (st) and ferrule (f): spring actuation by screwdriver |
| Housing - Connection cross-section | s*: 0.08â¦1.5 mm²,st*: 0.25â¦1.5 mm²,f*: 0.14â¦0.75 mm² |
| Housing - Connection cross-section AWG | s*: AWG28...16,st*: AWG22...16,f*: AWG26...19 |
| Housing - Stripping length | 8…9 mm |
| Housing - Current load power contacts | Imax: 10 A |
| Load type | ohmic, inductive, lamp load |
| Max. output current | 0.5 A (short-circuit proof) per channel, â 10 A |
| Reverse voltage protection | yes |
| Breaking energy | < 150 mJ/channel |
| Switching times | typ. TON: 140 µs, typ. TOFF: 300 µs |
