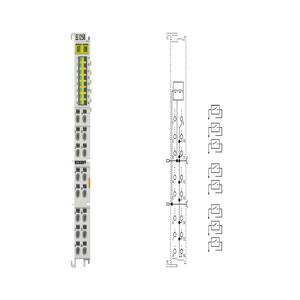

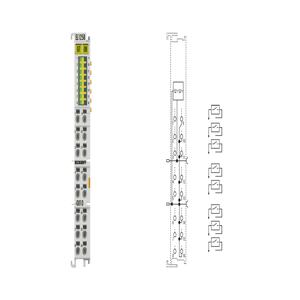

EL1258 - Beckhoff EtherCAT Terminal
EL1258 Beckhoff EtherCAT Terminal Technical Specifications
| Brand | Beckhoff |
| Product Type | EtherCAT Terminal |
| Product | EL1258 |
EL1258 Beckhoff EtherCAT Terminal Technical Specifications
| Specification | Value |
|---|---|
| Connection technology | 2-wire |
| Number of inputs | 8 |
| Nominal voltage | 24 V DC (-15%/+20%) |
| “0” signal voltage | -3...+5 V (IEC 61131-2, type 1/3) |
| “1” signal voltage | 11..30 V (IEC 61131-2, type 1/3) |
| Input current | typ. 3 mA (EN 61131-2, type 1/3) |
| Input filter | typ. < 1 µs |
| Distributed clocks | yes |
| Current consumption power contacts | typ. 6 mA |
| Current consumption E-bus | typ. 130 mA |
| Electrical isolation | 500 V (E-bus/field potential) |
| Configuration | no address or configuration setting |
| Special features | multi-timestamping |
| Weight | approx. 55 g |
| Operating temperature | 0…55°C |
| Storage temperature | -25…+85°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/variable |
| Approvals/markings | CE, UL |
| Housing - Design form | HD (High Density) housing with signal LEDs |
| Housing - Material | polycarbonate |
| Housing - Dimensions (W x H x D) | 12Â mm x 100Â mm x 68 mm |
| Housing - Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Housing - Side by side mounting by means of | double slot and key connection |
| Housing - Marking | labeling of the BZxxxx series |
| Housing - Wiring | solid conductors (s): direct plug-in technique; fine-stranded conductors (st) and ferrule (f): spring actuation by screwdriver |
| Housing - Connection cross-section | s*: 0.08â¦1.5 mm²,st*: 0.25â¦1.5 mm²,f*: 0.14â¦0.75 mm² |
| Housing - Connection cross-section AWG | s*: AWG28...16,st*: AWG22...16,f*: AWG26...19 |
| Housing - Stripping length | 8…9 mm |
| Housing - Current load power contacts | Imax: 10 A |
| Distributed clock precision | << 1 µs |
| Internal sampling/execution | < 10â¦40 µs, corresponds to 100â¦25 k detectable edges/s, dependent on configuration |
