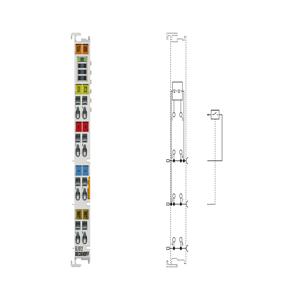

EL1012 - Beckhoff EtherCAT Terminal

The Beckhoff EL1012 EtherCAT Terminal provides 2 digital inputs with 24 V DC nominal voltage, supporting both type 1 and type 3 input specifications per EN 61131-2. It features a 4-wire connection technology, allowing secure and simplified wiring. With a typical input current of 3 mA and an input filter of 10 µs, the terminal ensures fast and accurate signal processing. Designed for reliability, it offers 500 V electrical isolation between the E-bus and field potential. Power efficiency is supported with just 90 mA E-bus consumption and minimal current from power contacts. The unit is compact, with dimensions of 12 × 100 × 68 mm and a weight of 50 g, housed in durable polycarbonate with integrated signal LEDs for clear diagnostics. Complying with EMC, vibration, and shock standards, as well as ATEX, UL, IECEx, and DNV GL certifications, the EL1012 delivers industrial-grade dependability.

The EL1012 EtherCAT Terminal is widely applied in machine building, process automation, and robotics where precise digital input monitoring is required. Engineers value its compact design, quick DIN rail mounting, and pluggable wiring that simplify integration into control panels. Its ability to provide stable 24 V DC input detection makes it suitable for packaging systems, conveyors, and material handling equipment. Maintenance teams rely on its integrated LEDs for fast diagnostics, reducing downtime during troubleshooting. For students and junior engineers, the EL1012 demonstrates how EtherCAT Terminals integrate high-speed communication with reliable signal acquisition, providing a practical example of scalable and efficient automation networks. Combining compactness, certification, and durability, it is a trusted choice in industrial environments.
