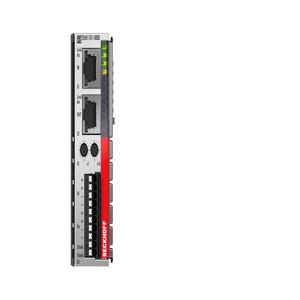

EK1000 - Beckhoff EtherCAT Coupler

The Beckhoff EK1000 EtherCAT Coupler is designed to link EtherCAT Terminals (ELxxxx) to Time-Sensitive Networking (TSN) systems. With dual RJ45 interfaces, it bridges 100 Mbit/s Ethernet and EtherCAT communication, supporting up to 65,534 terminals. Its data transfer medium is a shielded Cat.5 Ethernet cable, ensuring reliable transmission over distances up to 100 meters. The device operates on a 24 V DC supply, with a typical input current of 120 mA, and offers an E-bus current capacity of 2 A. Electrical isolation of 500 V safeguards both supply voltage and Ethernet, making it secure for use in sensitive industrial environments.

Engineered for demanding applications, the EK1000 EtherCAT Coupler provides stable performance within a wide operating temperature range of -25°C to +60°C and storage tolerance down to -40°C. Its IP20 protection rating, shock and vibration resistance compliant with EN 60068-2-6/27, and EMC conformity with EN 61000-6-2/4 standards make it a trusted component in harsh conditions. The unit also supports power contacts up to 24 V DC/10 A, providing robust power delivery across extended I/O systems. Lightweight and compact, with a modular design, it simplifies integration into control cabinets where space efficiency is essential.

In real-world applications, the Beckhoff EK1000 plays a key role in industries adopting TSN-enabled automation, including automotive production lines, packaging machines, and process plants. Its ability to integrate traditional EtherCAT I/O with modern TSN networks allows engineers to scale systems without compromising speed or precision. With CE approvals and proven durability, the Beckhoff EK1000 EtherCAT Coupler strengthens industrial automation infrastructure, ensuring long-term reliability and flexibility in high-performance environments.
