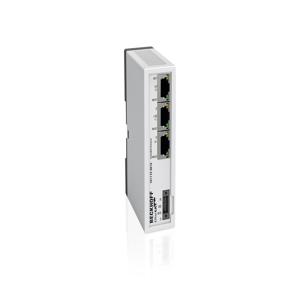

CU1123-0010 - Beckhoff EtherCAT Components
CU1123-0010 Beckhoff EtherCAT Components Technical Specifications
| Brand | Beckhoff |
| Product Type | EtherCAT Components |
| Product | CU1123-0010 |
CU1123-0010 Beckhoff EtherCAT Components Technical Specifications
| Specification | Value |
|---|---|
| Task within EtherCAT system | coupling of EtherCAT junctions |
| Data transfer medium | Ethernet/EtherCAT cable (copper, min. Cat.5, 4-wire, AWG22), shielded |
| Bus interface | 3 x RJ45 |
| Distance between stations | max. 300 m |
| Protocol | EtherCAT |
| Delay | approx. 1 ยตs per port |
| Data transfer rates | 100 Mbit/s |
| Configuration | not required |
| Power supply | 24 V (-15%/+20%), 3-pin connection (+, -, PE) |
| Operating temperature | 0...55ยฐC |
| Storage temperature | -25...+85ยฐC |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/variable |
| Approvals/markings | CE |
