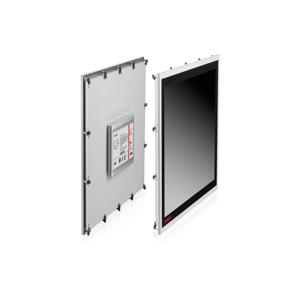

CPX29xx-0000 - Beckhoff Ex Control Panels
Technical Specifications of Beckhoff Ex Control Panels CPX29xx-0000:
| Brand | Beckhoff |
| Product Type | Ex Control Panels |
| Product | CPX29xx-0000 |
CPX29xx-0000 Beckhoff Ex Control Panels Technical Specifications
| Specification | Value |
|---|---|
| Device type | Multi-touch built-in Control Panel with DVI/USB Extended interface |
| Housing | aluminum housing with glass front for application in hazardous areas of zone 2/22 |
| Display size/resolution | 15" 1024 x 768, 19" 1280 x 1024 or 21.5" 1920 x 1080 |
| Touch screen | multi-finger touch screen |
| Protection rating | front side IP65, rear side IP20 |
| Connection technology | DVI-E and USB-E enables to connect the Control Panel at a distance of up to 50Â m to the PC. The DVI-E input is compatible to the standard DVI output of a PC. USB-E 2.0 transmits USBÂ 2.0 with 480Â Mbit/s. |
| Interfaces | RJ45 for USB-E 2.0, USB 3.0 input for the direct connection to the standard USB output of a PCs at a distance up to 5Â m, DVI input, 2Â x USBÂ 3.0 (at more than 3Â m distance to the PC limited to USBÂ 2.0) |
| Operating temperature | 0…55°C |
| Installation | pull-out clamping levers for fast installation without loose parts |
| Power supply | 24 V DC |
| Approvals/markings | CE, UL, ATEX, IECEx, cFMus |
| Ex marking | ATEX:II 3G Ex ec IIC T4 GcII 3D Ex tc IIIC T135 °C DcIECEx:Ex ec IIC T4 GcEx tc IIIC T135 °C DccFMus:Class I, II, III, Division 2, Groups A, B, C, D, F and GClass I, Zone 2, AEx ec IIC T4 GcZone 22, AEx tc IIIB T135°C Dc |
