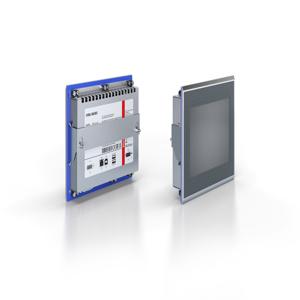

CP6906-1400-0010 - Beckhoff Single-touch Control Panels
Technical Specifications of Beckhoff Single-touch Control Panels CP6906-1400-0010:
| Brand | Beckhoff |
| Product Type | Single-touch Control Panels |
| Product | CP6906-1400-0010 |
CP6906-1400-0010 Beckhoff Single-touch Control Panels Technical Specifications
| Specification | Value |
|---|---|
| Device type | Economy built-in Control Panel with DVI/USB Extended interface |
| Housing | stainless steel front 1.4404 with stainless steel sheet rear cover and silicone seal |
| Display size/resolution | 7" 800 x 480 |
| Touch screen | single-finger touch screen, flush laminated |
| Protection rating | front side IP65, rear side IP20 |
| Connection technology | DVI-E and USB-E 2.0 enables to connect the Control Panel at a distance of up to 50 m to the PC. The DVI-E input is compatible to the standard DVI output of a PC. USB-E 2.0 transmits USB 2.0 with 480 Mbit/s. |
| Interfaces | RJ45 for USB-E 2.0, USB 2.0 input for the direct connection to the standard USB output of a PCs at a distance up to 5 m, DVI input, 2 x USB 2.0 |
| Operating temperature | 0…55°C |
| Installation | pull-out clamping levers for fast installation without loose parts |
| Power supply | 24 V DC |
