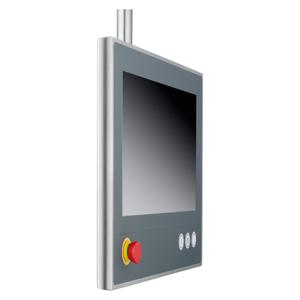

CP39xx-1414-0010 - Beckhoff Stainless Steel Control Panels
Technical Specifications of Beckhoff Stainless Steel Control Panels CP39xx-1414-0010:
| Brand | Beckhoff |
| Product Type | Stainless Steel Control Panels |
| Product | CP39xx-1414-0010 |
CP39xx-1414-0010 Beckhoff Stainless Steel Control Panels Technical Specifications
| Specification | Value |
|---|---|
| Device type | Multi-touch Control Panel with CP-Link 4 interface |
| Housing | stainless steel housing 1.4301 with glass front (12.1", 15.6", 18.5") and silicone seal, stainless steel housing 1.4404 with glass front (21.5") and silicone seal |
| Display size/resolution | 12.1" 1280 x 800, 15.6" 1366 x 768, 18.5" 1366 x 768 or 21.5" 1920 x 1080 |
| Touch screen | multi-finger touch screen, flush laminated polyester film |
| Push-button extension | 3 x illuminated short-stroke buttons, round, 19 mm with RGBW LED ring lighting connected via USB, 2 of these buttons labeled âIâ and â0â, slide-in labels exchangeable, 1 x emergency stop, type RAFI RAFIX 22FS+ wired with two normally-closed contacts to a 4-pin round connector. |
| Protection rating | IP65 |
| Connection technology | CP-Link 4 enables to connect the Control Panel at a distance of up to 100 m to the PC via a Cat.6A cable with either an integrated or separate 24 V DC power supply depending on the transmitter module. CP-Link 4 transmits USB 2.0 with 100 Mbit/s and DVI. |
| Interfaces | 2 x round connectors M12 IP65 for CP-Link 4 and optional 24 V power supply, 1 x USB A socket with IP65 screw-on cap |
| Operating temperature | 0…45°C |
| Installation | 6 M5 threaded holes for mounting arm adapter | mounting arm adapter |
