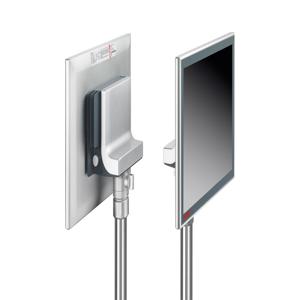

CP37xx-0010 - Beckhoff Multi Touch Panel PCs
Technical Specifications of Beckhoff Multi Touch Panel PCs CP37xx-0010:
| Brand | Beckhoff |
| Product Type | Multi Touch Panel PCs |
| Product | CP37xx-0010 |
CP37xx-0010 Beckhoff Multi Touch Panel PCs Technical Specifications
| Specification | Value |
|---|---|
| Device type | Multi-touch Panel PC |
| Housing | aluminum housing for mounting arm installation |
| Mounting arm adapter | rotatable and tiltable mounting arm adapter for mounting arm systems with 48 mm tube from top or from bottom |
| Wiring area | for up to 4 IP65 connectors, 2 of these are free |
| Slots for hard disk/flash | 2 slots for CFast |
| Cooling | passive through heat sink structure, internal fan for equal heat distributionto all housing walls |
| Free space for air circulation | 20 cm (7.9") around the PC required |
| Protection rating | IP65 |
| Display size/resolution | 12" 800 x 600, 12.1" 1280 x 800, 15" 1024 x 768, 15.6" 1366 x 768, 18.5" 1366 x 768, 19" 1280 x 1024, 21.5" 1920 x 1080 or 24" 1920 x 1080 |
| Touch screen | multi-finger touch screen |
| Processor | Intel Atom®E3815, 1.46 GHz, 1 core (TC2, TC3: 40) |
| Motherboard | 3½-inch motherboard for Intel Atom®E38xx |
| Memory | 2 GB DDR3L RAM |
| Graphic | integrated in the processor |
| Ethernet | 2 x 100/1000BASE-T on-board, one of these is led out |
| Hard disks/flash | 40 GB CFast card |
| Interfaces | 1 x Ethernet 100/1000BASE-T push-pull |
| Power supply | 24 V DC |
| Operating system | Windows Embedded Compact 7, English |
