In most procurement cycles, CP29XX-0000 is considered with Schneider PLC, Beckhoff Cp39Xx 0000 and Siemens VFD, giving decision-makers confidence that they’ve chosen the most dependable component.

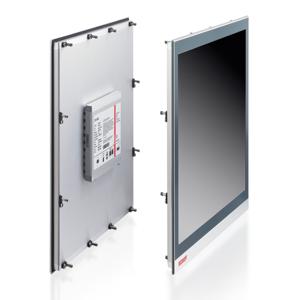

CP29xx-0000 - Beckhoff Multi-touch Control Panels
Technical Specifications of Beckhoff Multi-touch Control Panels CP29xx-0000:
| Brand | Beckhoff |
| Product Type | Multi-touch Control Panels |
| Product | CP29xx-0000 |
CP29xx-0000 Beckhoff Multi-touch Control Panels Technical Specifications
| Specification | Value |
|---|---|
| Device type | Multi-touch built-in Control Panel with DVI/USB Extended interface |
| Housing | aluminum housing with glass front |
| Display size/resolution | 7" 800 x 480, 12" 800 x 600, 12.1" 1280 x 800, 15" 1024 x 768, 15.6" 1366 x 768, 18.5" 1366 x 768, 19" 1280 x 1024, 21.5" 1920 x 1080 or 24" 1920 x 1080 |
| Touch screen | multi-finger touch screen |
| Protection rating | front side IP65, rear side IP20 |
| Connection technology | DVI-E and USB-E enables to connect the Control Panel at a distance of up to 50Â m to the PC. The DVI-E input is compatible to the standard DVI output of a PC. USB-E 2.0 transmits USBÂ 2.0 with 480Â Mbit/s. |
| Interfaces | RJ45 for USB-E 2.0, USB 3.0 input for the direct connection to the standard USB output of a PCs at a distance up to 5 m, DVI input, 2 x USB 3.0 (at more than 3 m distance to the PC limited to USB 2.0) |
| Operating temperature | 0…55°C |
| Installation | pull-out clamping levers for fast installation without loose parts |
| Power supply | 24 V DC |
