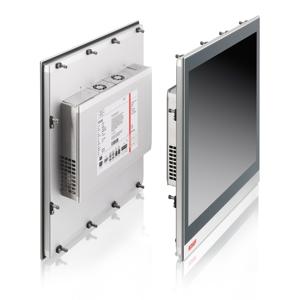

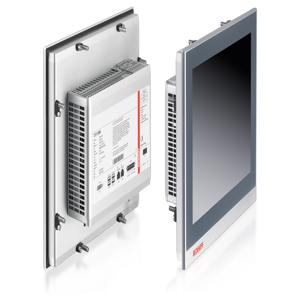

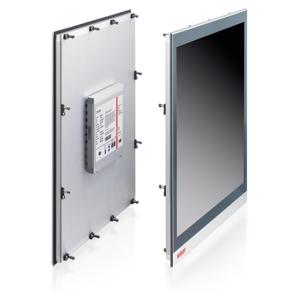

In sourcing discussions, CP22XX-0030 is often placed next to Beckhoff Cp26Xx 0000, Beckhoff Cp22Xx 0040 and Beckhoff Cp27Xx 0020 so procurement teams can align budgets and technical requirements effectively.
CP22xx-0030 - Beckhoff Multi Touch Panel PCs
Technical Specifications of Beckhoff Multi Touch Panel PCs CP22xx-0030:
| Brand | Beckhoff |
| Product Type | Multi Touch Panel PCs |
| Product | CP22xx-0030 |
CP22xx-0030 Beckhoff Multi Touch Panel PCs Technical Specifications
| Specification | Value |
|---|---|
| Device type | Multi-touch built-in Panel PC |
| Housing | aluminum housing with glass front |
| Slots for hard disk/flash | 1 slot for 2½-inch hard disk/SSD, 1 slot for CFast |
| Installation | pull-out clamping levers for fast installation without loose parts |
| Protection rating | front side IP65, rear side IP20 |
| Display size/resolution | 12" 800 x 600, 12.1" 1280 x 800, 15" 1024 x 768, 15.6" 1366 x 768, 18.5" 1366 x 768, 19" 1280 x 1024, 21.5" 1920 x 1080 or 24" 1920 x 1080 |
| Touch screen | multi-finger touch screen |
| Processor | Intel®Celeron®G4900 3.1 GHz, 2 cores (TC3: 50) |
| Motherboard | 3½-inch motherboard for 8th/9thgeneration Intel®Celeron®, Pentium®, Core⢠i3/i5/i7 |
| Memory | 4 GB DDR4 RAM |
| Graphic | integrated in the processor |
| Ethernet | 2 x 100/1000BASE-T on-board |
| RAID | on-board SATA RAID 1 controller |
| Hard disks/flash | hard disk, 2½-inch, 320 GB |
| Interfaces | 4 x USB 3.1 Gen. 1, 1 x RS232, 1 x DVI |
| Power supply | 24 V DC |
