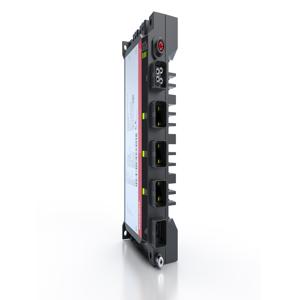

C7015-0030 - Beckhoff Ultra-compact Industrial PC
Technical Specifications of Beckhoff Ultra-compact Industrial PC C7015-0030:
| Brand | Beckhoff |
| Product Type | Ultra-compact Industrial PC |
| Product | C7015-0030 |
C7015-0030 Beckhoff Ultra-compact Industrial PC Technical Specifications
| Specification | Value |
|---|---|
| Device type | Ultra-compact IP65 Industrial PC |
| Housing | aluminum zinc die-cast housing |
| Installation | mounting sheet integrated at the rear wall and side wall |
| Slots for hard disk/flash | 1 slot for M.2 SSD |
| Cooling | passive with single side cooling plate |
| Free space for air circulation | 5 cm (2") on top and bottom of the PC required |
| Protection rating | IP65, in completely connected condition |
| Operating temperature | 0…50°C |
| Dimensions (W x H x D) | 85 x 167 x 43 mm (3.3" x 6.6" x 1.7") |
| Processor | Intel Atom®x6214RE, 1.4 GHz, 2 cores (TC3: 40) |
| Motherboard | compact motherboard for Intel Atom®x6 |
| Memory | 4 GB DDR4 RAM |
| Graphic | integrated in the processor |
| Ethernet | 3 x 100/1000/2500BASE-T on-board push-pull |
| Hard disks/flash | 40 GB M.2 SSD |
| Interfaces | 1 x mini DisplayPort push-pull, 1 x EtherCAT P signal output, 2 x USB 3.0 push-pull |
| Power supply | 24 V DC |
