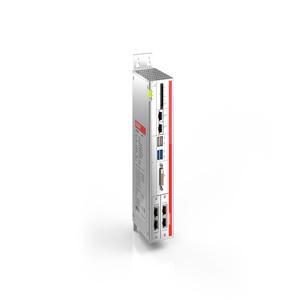

C6925-0040 - Beckhoff Compact Industrial PCs
C6925-0040 Beckhoff Compact Industrial PCs Technical Specifications
| Brand | Beckhoff |
| Product Type | Compact Industrial PCs |
| Product | C6925-0040 |
C6925-0040 Beckhoff Compact Industrial PCs Technical Specifications
| Specification | Value |
|---|---|
| Device type | Fanless control cabinet Industrial PC |
| Housing | aluminum housing |
| Installation | mounting sheet at the rear wall |
| Slots for hard disk/flash | 1 slot for CFast |
| Cooling | passive |
| Free space for air circulation | 5 cm (2") on top and bottom of the PC required |
| Protection rating | IP20 |
| Operating temperature | 0…55°C |
| Weight of basic configuration | 1.75 kg (3.9 lbs) |
| Dimensions (W x H x D) | 65 x 223 x 121 mm (2.6" x 8.8" x 4.8"), without mounting plate |
| Processor | Intel Atom®x5-E3930, 1.3 GHz, 2 cores (TC3: 40) |
| Motherboard | 3½-inch motherboard for Intel Atom®x5-E39xx |
| Memory | 4 GB DDR4 RAM |
| Graphic | integrated in the processor |
| Ethernet | 2 x 100/1000BASE-T on-board |
| Hard disks/flash | 40 GB CFast card |
| Interfaces | 2 x USB 3.0, 2 x USB 2.0, 1 x DVI |
| Power supply | 24 V DC |
