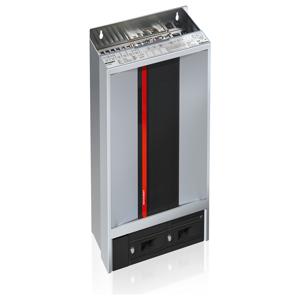

C6670-0010 - Beckhoff Control Cabinet Industrial Server
Technical Specifications of Beckhoff Control Cabinet Industrial Server C6670-0010:
| Brand | Beckhoff |
| Product Type | Control Cabinet Industrial Server |
| Product | C6670-0010 |
C6670-0010 Beckhoff Control Cabinet Industrial Server Technical Specifications
| Specification | Value |
|---|---|
| Device type | 6 slot SSI EEB industrial server for control cabinet installation |
| Slots for hard disk/flash | 2 removable frames for hard disks |
| Protection rating | IP20 |
| Operating temperature | 0…50°C |
| Weight of basic configuration | 16 kg (35.2 lbs) |
| Dimensions (W x H x D) | 410 x 480 x 201 mm (16.1" x 18.9" x 7.9") |
| Processor | 2x Intel®Xeon®Silver 4109T 2.0 GHz, 8 cores per processor (TC3: 82) |
| Motherboard | server motherboard for Intel®Xeon®scalable processors |
| PCIe®/PCI slots | 3 x PCIe® x8, 3 x PCIe® x16 for full-length plug-in cards |
| Memory | 64 GB DDR4 RAM ECC |
| Graphic | graphics card, 1 DVI-I and 1 DVI-D connector, occupies a PCIe®x16 slot |
| Ethernet | 2 x 10GBASE-T on-board |
| RAID | on-board SATA RAID 1 controller |
| Hard disks/flash | hard disk, 3½-inch, 1 TB, in removable frame |
| Interfaces | 2 x USB 3.0, 2 x USB 2.0, 1 x RS232 |
| Power supply | 100…240 V AC |
